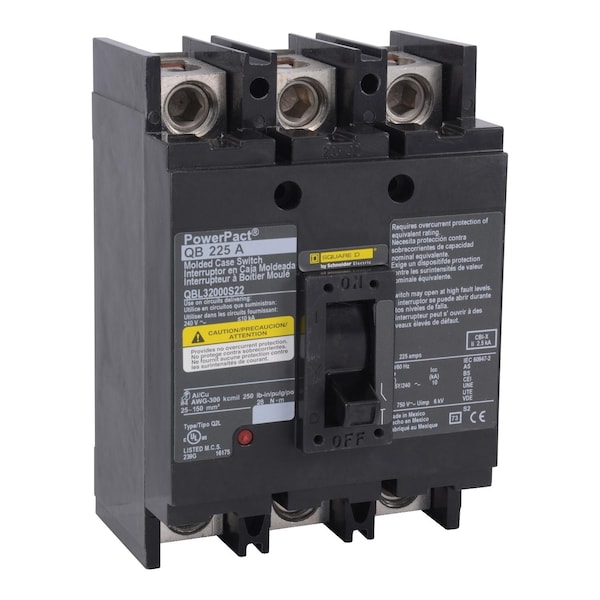

Molded Case Circuit Breaker, QBL Series, 225A, 3 Pole, 240V AC, 10kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | QBL |
| Amps | 225A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 10kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 250A, QB |
| Width | 4-1/2 in |
| Depth | 3.93 in |
| Height | 6.47 in |
| DC Voltage Rating | Not Rated |
| Max. Wire Size | 300 kcmil (Cu/Al) |
| Min. Wire Size | 4 AWG (Cu/Al) |
| Features | Mercury Free; PVC Free |
| High Amp Trip Setting | 4,500 A |
| Standards | CSA, UL Listed, IEC |
| Package Quantity | 1 |
