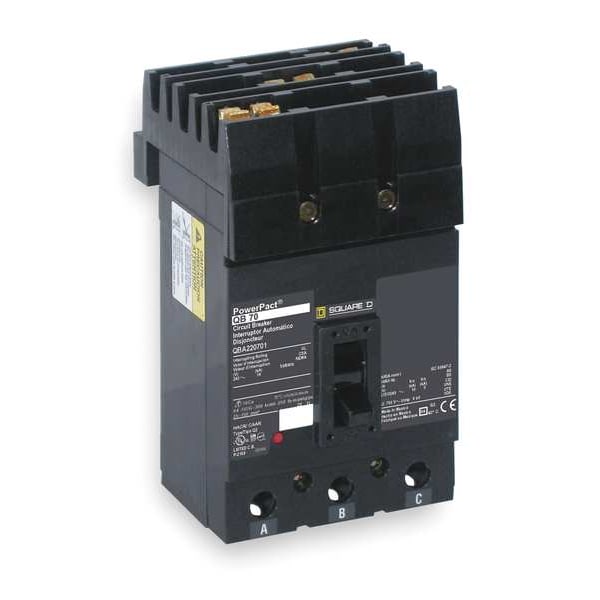

Molded Case Circuit Breaker, QDA Series, 80A, 3 Pole, 240V AC, 25kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | QDA |
| Amps | 80A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Phase | 3 |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | I-Line |
| Max. AIR Rating | 25kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Instantaneous Trip | Fixed |
| Terminal Connection | Lug, I-Line |
| Phase Connection | ABC |
| Frame Size | 250A, QD |
| Width | 4-1/2 in |
| Depth | 3.93 in |
| Height | 6.47 in |
| DC Voltage Rating | Not Rated |
| For Use With | I Line Panelboards |
| High Amp Trip Setting | 1,800 A |
| Standards | CSA, IEC, UL listed |
| Max. Wire Size | 300 MCM |
| Low Amp Trip Setting | 1,000 A |
| Min. Wire Size | 4 AWG |
| Features | Mercury Free; PVC Free |
| Application | HACR rated Applications; Distribution |
| Interrupt Rating | 25 kA at 120/208/240V AC |
| Max. Operating Temp. | 104 deg F |
| Mounting | Plug In Panelboard |
| Package Quantity | 1 |
