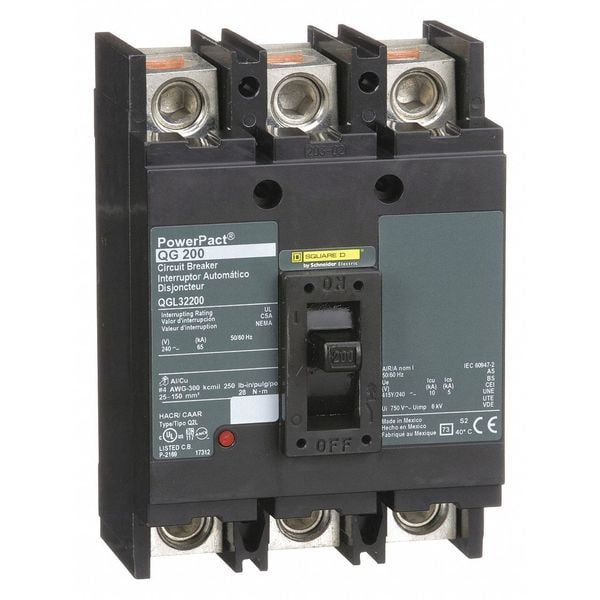

Molded Case Circuit Breaker, QGL Series, 200A, 3 Pole, 240V AC, 65kA at 240V AC
| Item | Molded Case Circuit Breaker |
|---|---|
| Series | QGL |
| Amps | 200A |
| Number of Poles | 3 |
| AC Voltage Rating | 240V AC |
| Circuit Breaker Type | Standard |
| Circuit Breaker Actuator | Operating Handle |
| Circuit Breaker Mounting Style | Unit Mount |
| Max. AIR Rating | 65kA at 240V AC |
| Trip Type | Thermal Magnetic |
| Terminal Connection | Line, Load Lug |
| Phase Connection | ABC |
| Frame Size | 250A, QG |
| Width | 4-1/2 in |
| Depth | 3.93 in |
| Height | 6.47 in |
| DC Voltage Rating | Not Rated |
| High Amp Trip Setting | 2,400 A |
| Features | Mercury Free; PVC Free |
| Application | HACR rated Applications; Distribution |
| Interrupt Rating | 65 kA at 120/208/240V AC |
| Standards | UL, CSA, NEMA, NOM |
| Package Quantity | 1 |
