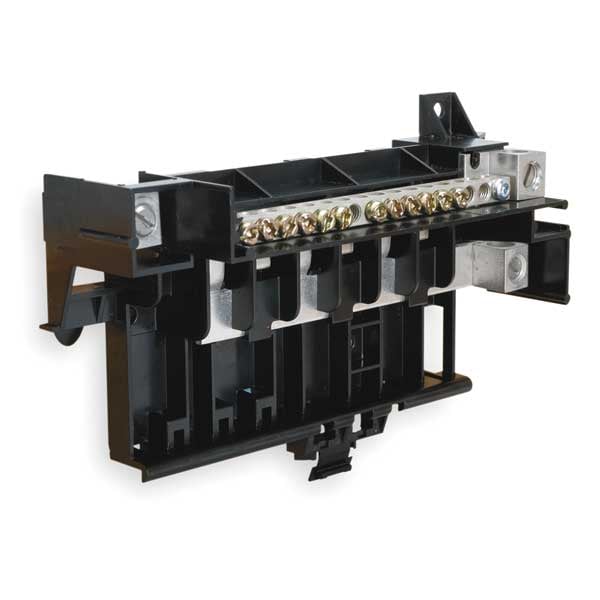

Mounting Base, Square D QO Circuit Breaker, 120/240V AC, 100A, 1, 2 Poles
| Item | Mounting Base |
|---|---|
| For Use With | Square D QO Circuit Breaker |
| Voltage | 120/240V AC |
| Amps | 100A |
| Number of Poles | 1, 2 |
| Max. Wire Size | AWG 1/0 aluminium/copper |
| Min. Wire Size | AWG 8 |
| Includes | Mounting Base, 6 Spaces |
| Height | 133 mm |
| Width | 6.06 in |
| Length | 2.35 in |
| Depth | 5.24 in |
| Length (Straight Wireway) | 2.35 in |
| Short-Circuit Current | 10 kA |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Net Weight | 0.2 kg |
| Number Of Spaces | 6 |
| Line Rated Current | 100 A |
| Load Center Type | main lugs |
| Awg Gauge | AWG 8...AWG 1/0 aluminium/copper |
| Wiring Configuration | 3-wire |
| Phase | 1 phase |
| Package Quantity | 1 |
