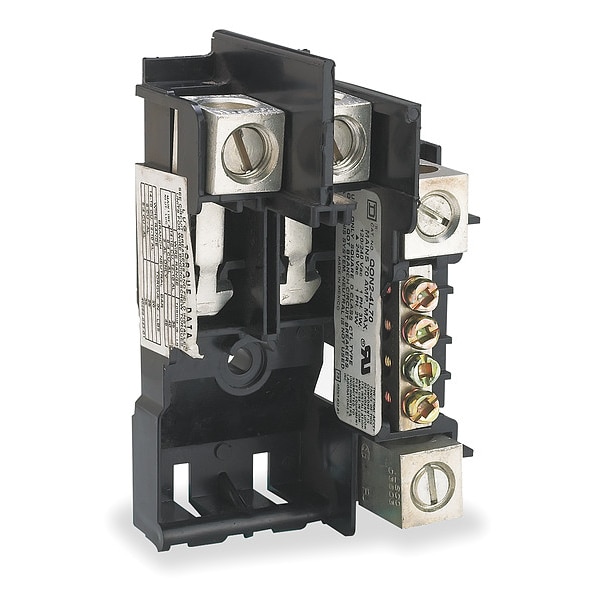

Mounting Base, Square D QO, QO GFI and QO EPD Circuit Breakers, 120/240V AC, 70A, 2 Poles
| Item | Mounting Base |
|---|---|
| For Use With | Square D QO, QO GFI and QO EPD Circuit Breakers |
| Voltage | 120/240V AC |
| Amps | 70A |
| Number of Poles | 2 |
| Max. Wire Size | AWG 4 copper ||AWG 3 aluminium |
| Min. Wire Size | AWG 14, AWG 12 |
| Width | 4.2 in |
| Height | 34 mm |
| Depth | 1.35 in |
| Short-Circuit Current | 10 kA |
| Wiring Configuration | 3-wire |
| Awg Gauge | AWG 14...AWG 4 copper || AWG 12...AWG 3 aluminium |
| Line Rated Current | 70 A |
| Net Weight | 1.4 kg |
| Load Center Type | main lugs |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Number Of Spaces | 2 |
| Phase | 1 phase |
| Package Quantity | 1 |
