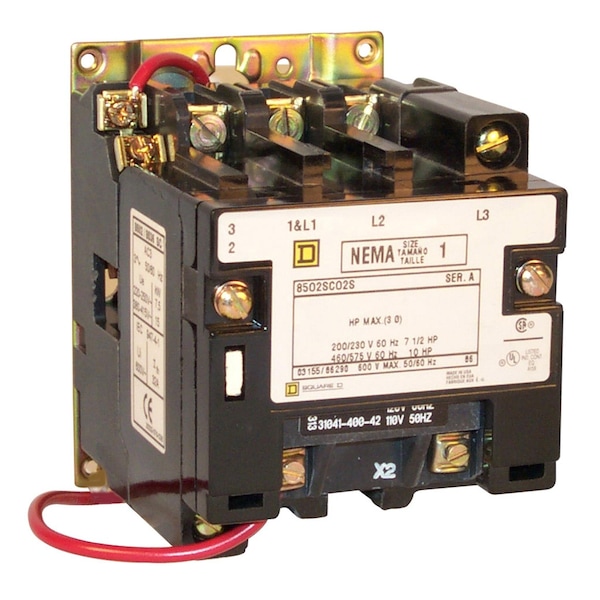

Contactores NEMA, Tipo S, no reversibles, Tamaño 1, 27A, 10HP a 575VCA, 3 fases, hasta 100kA, 4 polos, bobina de 120VCA, abierto.
| Item | Contactor |
|---|---|
| Full Load Amps | 27 |
| Action | Non-Reversing |
| Number of Poles | 4 |
| Coil Volts | 600VAC |
| Height | 110.24 mm |
| Width | 107.95 mm |
| Depth | 107.19 mm |
| Poles Description | 4P |
| [Uc] Control Circuit Voltage | 120 V AC 60 Hz || 110 V AC 50 Hz |
| Local Signalling | no indicator |
| Control Type | No control units |
| Product Certifications | UL listed file E78351 CCN NLDX || CSA |
| Phase | 3 phase |
| Electrical Connection | Screw Clamp Terminals |
| Product Or Component Type | Contactor |
| Control Circuit | Separate control circuit |
| Nema Degree Of Protection | not rated (open device) |
| Auxiliary Contact Composition | without |
| [Ue] Rated Operational Voltage | 600 V AC |
| Line Rated Current | 27 A |
| Nema Size | 1 |
| Contactor Application | non-reversing |
| Product Compatibility | circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC || fuse J 60 A maximum, SCCR: 100 kA at 600 V AC || fuse T 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC || fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
| Rated Power In Hp | 7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC |
| Horsepower Rating | 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC |
| Coil Voltage | 120 V AC 60 Hz; 110 V AC 50 Hz |
| Certifications | UL listed file E78351 CCN NLDX; CSA |
| Short Circuit Current Rating | Circuit-breaker 70 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 60 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 60 A maximum, SCCR: 100 kA at 600 V AC |
| Provided Equipment | fuse not supplied |
| Range of Product | 8502S |
| Package Quantity | 1 |
