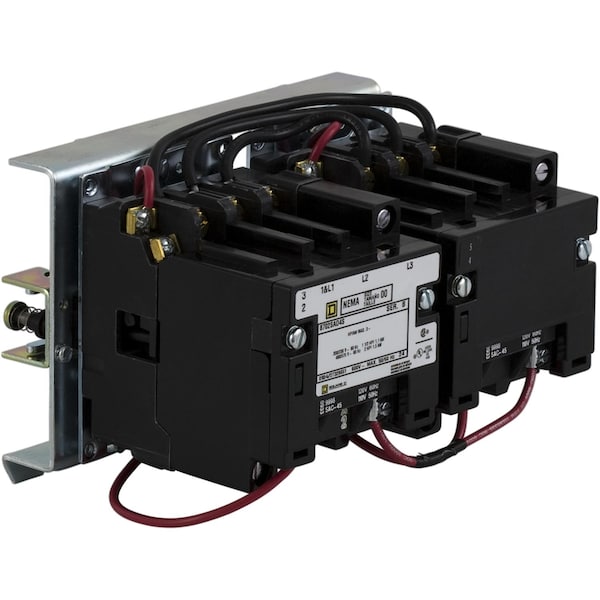

Contacto NEMA, Tipo S, de reversa, horizontal, Tamaño 0, 18A, 5HP a 575VCA, 3 fases, hasta 100kA, 3 polos, bobina de 120VCA, estilo abierto.
| Item | Reversing Contactor,Size 0,3-Pole,Hor |
|---|---|
| Width | 181.1 mm |
| Height | 127 mm |
| Depth | 134.87 mm |
| Local Signalling | no indicator |
| Line Rated Current | 18 A |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Rated Power In Hp | 3 HP 200 V AC || 3 HP 230 V AC || 5 HP 460 V AC || 5 HP 575 V AC |
| Nema Degree Of Protection | not rated (open device) |
| Control Circuit | Separate control circuit |
| Control Type | No control units |
| Wiring Mode | 3 wires |
| Poles Description | 3P |
| Condition Of Use | horizontal |
| Product Certifications | UL Listed || CSA |
| [Ue] Rated Operational Voltage | 600 V AC |
| Nema Size | 0 |
| Phase | 3 phase |
| Electrical Connection | Screw Clamp Terminals |
| Contactor Application | reversing |
| Product Or Component Type | Contactor |
| Provided Equipment | fuse not supplied |
| Range of Product | type S |
| Package Quantity | 1 |
