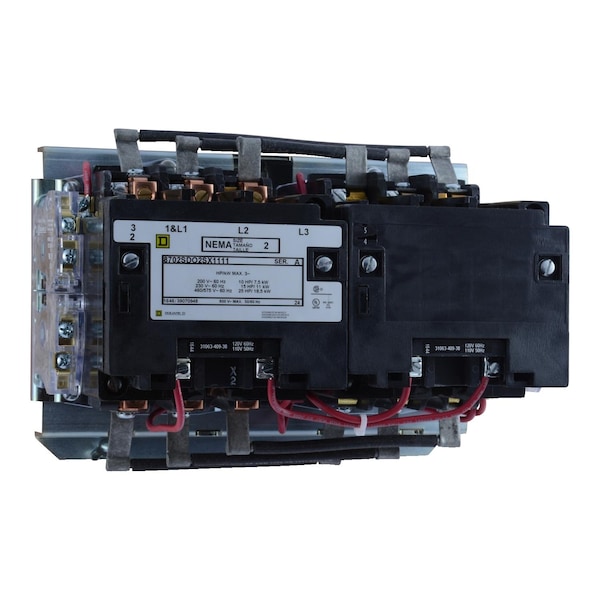

Contactor NEMA, Tipo S, inversor, horizontal, Tamaño 2, 45A, 25HP a 575VAC, 3 fases, hasta 100kA, 3 polos, bobina de 120VAC, estilo abierto.
| Item | Contactor |
|---|---|
| Action | Reversing |
| Full Load Amps | 45 |
| Number of Poles | 3 |
| Coil Volts | 600VAC |
| Height | 174.75 mm |
| Width | 228.6 mm |
| Depth | 153.16 mm |
| NEMA Size | 2 |
| Control Circuit | Separate control circuit |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Poles Description | 3P |
| [Ue] Rated Operational Voltage | 600 V AC |
| Product Or Component Type | Contactor |
| Nema Degree Of Protection | not rated (open device) |
| Rated Power In Hp | 10 HP 200 V AC || 15 HP 230 V AC || 25 HP 460 V AC || 25 HP 575 V AC |
| Control Type | No control units |
| Condition Of Use | horizontal |
| Contactor Application | reversing |
| Wiring Mode | 3 wires |
| Electrical Connection | Screw Clamp Terminals |
| Line Rated Current | 45 A |
| Product Certifications | UL Listed || CSA |
| Local Signalling | no indicator |
| Phase | 3 phase |
| Coil Voltage | 110 V AC 50 Hz; 120 V AC 60 Hz |
| Certifications | UL Listed |
| Horsepower Rating | 10 HP 200 V AC; 15 HP 230 V AC; 25 HP 460 V AC; 25 HP 575 V AC |
| Short Circuit Current Rating | Circuit-breaker 100 A maximum, SCCR: 100 kA at 480 V AC; Fuse J 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse T 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK1 100 A maximum, SCCR: 100 kA at 600 V AC; Fuse RK5 100 A maximum, SCCR: 100 kA at 600 V AC |
| Provided Equipment | fuse not supplied |
| Range of Product | type S |
| Package Quantity | 1 |
