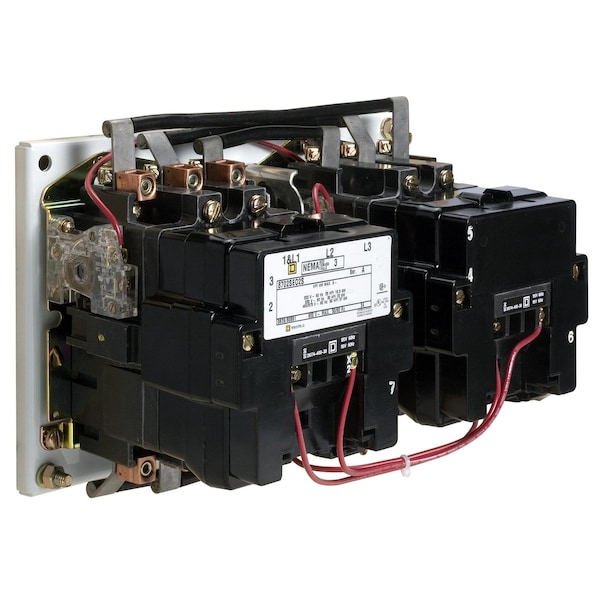

Contactador NEMA, Tipo S, reversión, horizontal, Tamaño 4, 135A, 100HP a 575VAC, 3 fases, hasta 100kA, 3 polos, bobina de 120VAC, estilo abierto.
| Item | Reversing Contactor,Size 4,3-Pole,Hor |
|---|---|
| Width | 361.95 mm |
| Height | 296.93 mm |
| Depth | 177.8 mm |
| Nema Size | 4 |
| Poles Description | 3P |
| Condition Of Use | horizontal |
| Nema Degree Of Protection | not rated (open device) |
| Electrical Connection | Screw Clamp Terminals |
| Product Certifications | UL Listed || CSA |
| Control Circuit | Separate control circuit |
| Line Rated Current | 135 A |
| Control Type | No control units |
| Contactor Application | reversing |
| Rated Power In Hp | 40 HP 200 V AC || 50 HP 230 V AC || 100 HP 460 V AC || 100 HP 575 V AC |
| Wiring Mode | 3 wires |
| Product Or Component Type | Contactor |
| Phase | 3 phase |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Local Signalling | no indicator |
| [Ue] Rated Operational Voltage | 600 V AC |
| Range of Product | type S |
| Provided Equipment | fuse not supplied |
| Package Quantity | 1 |
