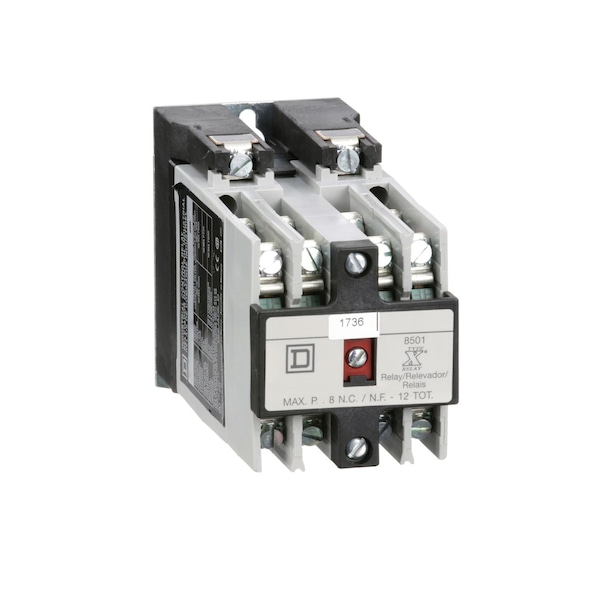

Relé de control NEMA, Tipo X, herramienta de máquina, 10A resistivos a 600 VCA, 4 contactos NA y 4 contactos NC, bobina de 110/120 VCA 50/60 Hz.
| Item | NEMA Control Relay,machine tool,4 NO a |
|---|---|
| Depth | 5.16 in |
| Width | 2.23 in |
| Height | 3-1/2 in |
| Inrush Power In Va | 148-148 VA 60 Hz || 143-143 VA 50 Hz |
| Line Rated Current | 10 A AC || 5 A DC |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Hold-In Power Consumption In Va | 23-23 VA 60 Hz || 25-25 VA 50 Hz |
| Operating Time | 15 ms - pick-up || 16 ms - drop-out |
| Relay Type | control |
| Electrical Connection | Screw Clamp Terminals |
| Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 |
| Control Circuit Voltage Limits | operational 0.85...1.1 Uc AC 50/60 Hz |
| [Icm] Rated Short-Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301...600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 |
| Mounting Support | panel |
| Awg Gauge | AWG 18...AWG 12 copper |
| Product Certifications | CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR |
| Product Or Component Type | relay |
| Ambient Air Temperature For Operation | -40-160°F |
| Contacts Type And Composition | standard contact cartridges |
| Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
| Range of Product | 8501X |
| Package Quantity | 1 |
