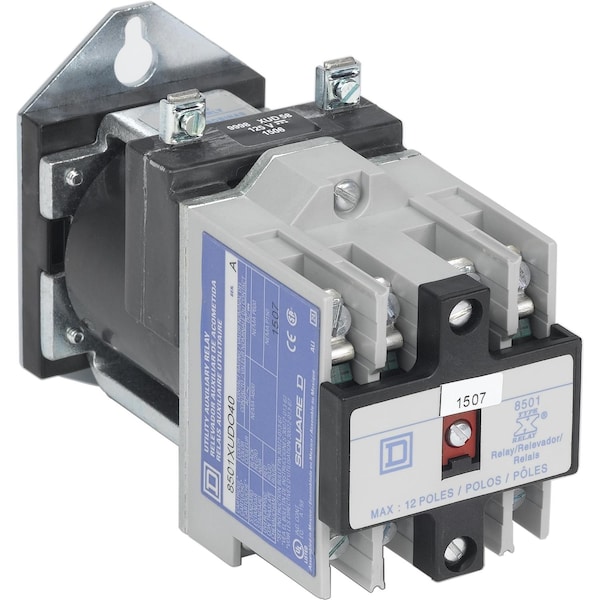

Relevador de control NEMA, Tipo X, uso general, 10A resistivos a 600VCA, 4 contactos normalmente abiertos, bobina de 125VCD, tornillos de cabeza plana.
| Item | NEMA Control Relay,utility relay,4 NO |
|---|---|
| Depth | 5.17 in |
| Width | 2.23 in |
| Height | 3.56 in |
| Product Certifications | UL Listed || CE || CSA |
| Ambient Air Temperature For Operation | -40-160°F |
| Operating Time | 37 ms - pick-up || 21 ms - drop-out |
| Poles Description | 4 P |
| Maximum Switching Voltage | 250 V DC |
| [Uc] Control Circuit Voltage | 125 V DC |
| Mounting Support | panel |
| Electrical Connection | ring tongue |
| Line Rated Current | 10 A AC || 5 A DC |
| Contacts Type And Composition | standard contact cartridges |
| Product Or Component Type | relay |
| Relay Type | utility |
| Range of Product | 8501X |
| Package Quantity | 1 |
