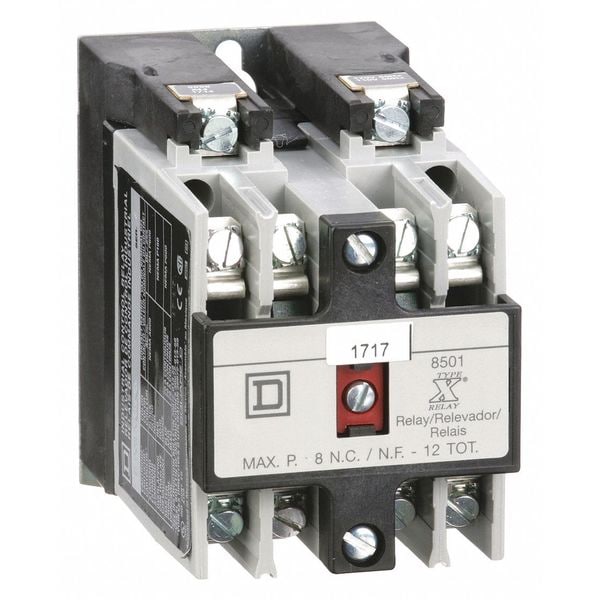

Relé de control NEMA 2NO 120VCA 10A.
| Item | NEMA Control Relay |
|---|---|
| Coil Volts | 120 V AC |
| Hz | 50/60 |
| Body Height - Relay | 3-1/2 in |
| Contact Amp Rating (Resistive) | 10A |
| Standards | CSA Certified, RoHS Compliant, UL Listed |
| Number of Pins - Relay | 6 |
| Mounting - Relay | Surface |
| Body Width - Relay | 2.23 in |
| Accessory Group | A |
| Hz - Electrical | 50, 60 |
| Item - Relay | NEMA Style Control Relay |
| Contact Form - Relay | SPST-NO |
| DC Contact Rating - Relay | 5A @ 125/250V |
| Body Depth - Relay | 3.95 in |
| Response Time | 15 msec, 16 msec |
| Contact Material | Silver Cadmium Oxide |
| Features | Contact Conversion without Removing Terminal Screws or Wires, Plug-in Contact Cartridges for Easy Contact Conversion and Replacement, Replaceable Coil, Self-Lifting Pressure Wire Connectors, Straight-Through Wiring |
| Contact Form | 2 NO |
| Overall Height - Relay | 3.5 in |
| Mounting | Panel |
| Power Consumption - Relay | 23 VA |
| AC Contact Rating - Relay | 10A @ 120/240/480/600V |
| Line Rated Current | 10 A AC || 5 A DC |
| Ambient Air Temperature For Operation | -40-160 °F |
| [Icm] Rated Short-Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 30 A 240 V AC inductive control circuit UL 508 || 15 A 480 V AC inductive control circuit UL 508 || 12 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC inductive control circuit UL 508 |
| Width | 2.23 in |
| Product Certifications | CSA LR60905 class 3211 03 || UL listed file E78403 CCN NKCR |
| Control Circuit Voltage Limits | operational 0.85 to 1.1 Uc AC 50/60 Hz |
| Mounting Support | panel |
| Product Or Component Type | relay |
| Relay Type | control |
| Rated Breaking Capacity | 6 A 120 V AC inductive control circuit UL 508 || 0.8 A 250 V DC resistive control circuit UL 508 || 3 A 240 V AC inductive control circuit UL 508 || 1.5 A 480 V AC inductive control circuit UL 508 || 1.2 A 600 V AC inductive control circuit UL 508 || 10 A <= 600 V AC resistive control circuit UL 508 || 1.1 A 125 V DC inductive control circuit UL 508 || 0.55 A 250 V DC inductive control circuit UL 508 || 0.2 A 301 to 600 V DC inductive control circuit UL 508 || 4 A 125 V DC resistive control circuit UL 508 |
| Contacts Type And Composition | standard contact cartridges |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz || 120 V AC 60 Hz |
| Inrush Power In Va | 148-148 VA 60 Hz || 143-143 VA 50 Hz |
| Operating Time | 15 ms - pick-up || 16 ms - drop-out |
| Tightening Torque | control circuit 1.02-1.36 N.m screw terminals |
| Height | 3-1/2 in |
| Awg Gauge | AWG 18 to AWG 12 copper |
| Depth | 3.95 in |
| Electrical Connection | Screw Clamp |
| Hold-In Power Consumption In Va | 23-23 VA 60 Hz || 25-25 VA 50 Hz |
| Compatible with Series | 8501 Type X Latching Control Relays |
| Frequency | 50/60 Hz |
| Power Consumption | 23 VA |
| Contact Rating (DC) | 0.2 A @ 301-600V, 0.55 A @ 250V, 0.8 A @ 250V, 1.1 A @ 125V, 4 A @ 125V |
| Contact Rating (AC) | 10 A @ 600V |
| Lead Size | 18 AWG |
| Body Width | 2.23 in |
| Body Height | 3-1/2 in |
| Overall Height | 3-1/2 in |
| Mounting Style | Surface |
| Current Rating | 10 A |
| Input Voltage | 110/120V AC |
| Relay Style | NEMA |
| Coil Voltage | 110/120V AC |
| Minimum Operating Temperature | -40 Degrees F |
| Number of Pins | 6 |
| Body Depth | 3.95 in |
| Maximum Operating Temperature | 160 Degrees F |
| Operating Temperature | -40 to 160°F (-40 to 71°C) |
| Certifications | CSA LR60905 class 3211 03; UL listed file E78403 CCN NKCR |
| Rated Short Circuit Making Capacity | 60 A 120 V AC inductive control circuit UL 508; 30 A 240 V AC inductive control circuit UL 508; 15 A 480 V AC inductive control circuit UL 508; 12 A 600 V AC inductive control circuit UL 508; 10 A Less than or Equal to 600 V AC resistive control circuit UL 508; 1.1 A 125 V DC inductive control circuit UL 508; 0.55 A 250 V DC inductive control circuit UL 508; 0.2 A 301 to 600 V DC inductive control circuit UL 508; 4 A 125 V DC inductive control circuit UL 508; 0.8 A 250 V DC resistive control circuit UL 508 |
| Package Quantity | 1 |
