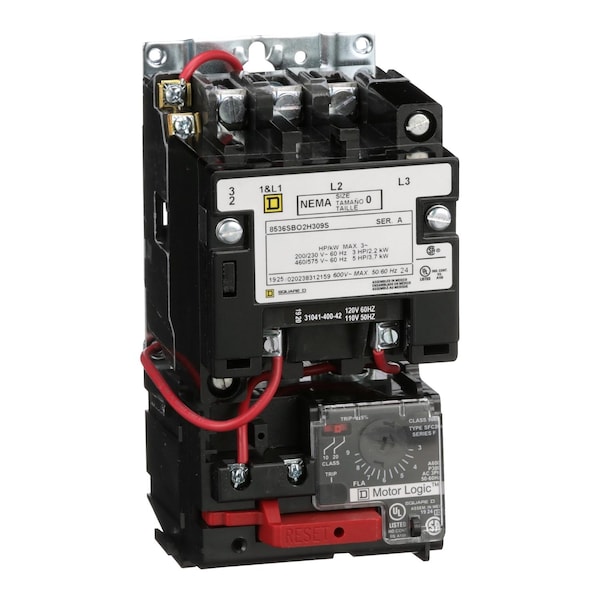

Arrancador de motor NEMA, Tipo S, no reversibie, Tamaño 0, 18A, 5HP a 460VCA, hasta 100kA SCCR, 3 fases, 3 polos, Motor Logic, bobina de 120VCA, abierto
| Item | Nonreversing magnetic starter,Size 0,1 |
|---|---|
| Amps | 18 A |
| Voltage | 600V AC |
| Standards | CSA Approved, UL Listed |
| Height | 172 mm |
| Starter Type | Non-Reversing |
| NEMA Rating | Not Rated |
| Width | 89 mm |
| Depth | 107 mm |
| Features | PVC Free |
| Starter Size | 0 |
| Poles Description | 3P |
| Motor Starter Type | non reversing |
| Auxiliary Contact Composition | without |
| Product or Component Type | motor starter |
| Range of Product | S |
| Thermal Overload Type | solid state Motor Logic class 10/20 |
| Local Signalling | without pilot light |
| Rated Power In Hp | 3 HP 200 V AC, 3 HP 230 V AC, 5 HP 460 V AC, 5 HP 575 V AC |
| Nema Degree of Protection | not rated (open device) |
| Electrical Connection | Screw Clamp Terminals |
| [Ue] Rated Operational Voltage | 600 V AC |
| Control Circuit | Separate control circuit |
| Phase | 3 phase |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Pvc Free | Yes |
| Control Type | No control units |
| Package Quantity | 1 |
