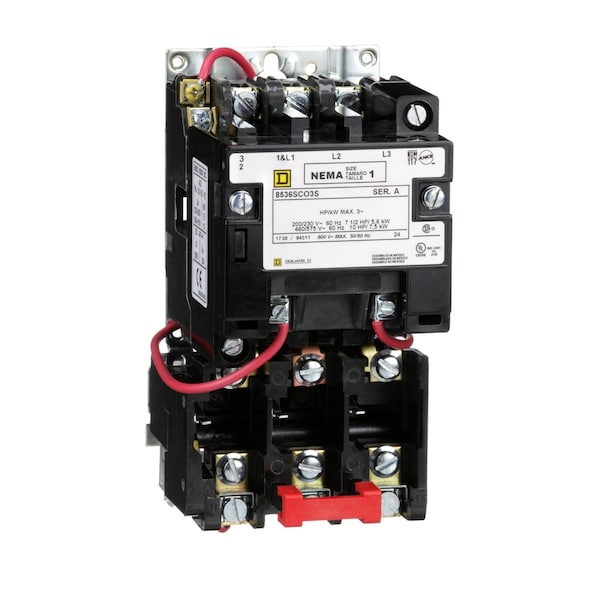

Arrancador de motor NEMA, Tipo S, no reversible, Tamaño 1, 27A, 10 HP a 460 VAC, 5 kA SCCR, 3 fases, 3 polos, aleación de fusión, bobina de 208 VAC, abierto.
| Item | Non-Reversing Starter Size 1,3-Pole,Me |
|---|---|
| Width | 89 mm |
| Height | 172 mm |
| Depth | 107 mm |
| Nema Size | 1 |
| Product Certifications | UL Listed || CSA || NEMA |
| Line Rated Current | 27 A |
| Auxiliary Contact Composition | without |
| Motor Starter Type | non reversing |
| Poles Description | 3P |
| Product Or Component Type | motor starter |
| Electrical Connection | Screw Clamp Terminals |
| Nema Degree Of Protection | not rated (open device) |
| [Ue] Rated Operational Voltage | 600 V AC |
| Thermal Overload Type | melting alloy 3 |
| Phase | 3 phase |
| Control Type | No control units |
| Local Signalling | without pilot light |
| Control Circuit | Separate control circuit |
| [Uc] Control Circuit Voltage | 208 V AC 60 Hz |
| Rated Power In Hp | 7.5 HP 200 V AC || 7.5 HP 230 V AC || 10 HP 460 V AC || 10 HP 575 V AC |
| Certifications | UL Listed, CSA, NEMA |
| Short Circuit Current Rating | Circuit-breaker: 5 kA at 600 V AC; Fuse: 5 kA at 600 V AC |
| Horsepower Rating | 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC |
| Pvc Free | Yes |
| Range of Product | S |
| Package Quantity | 1 |
