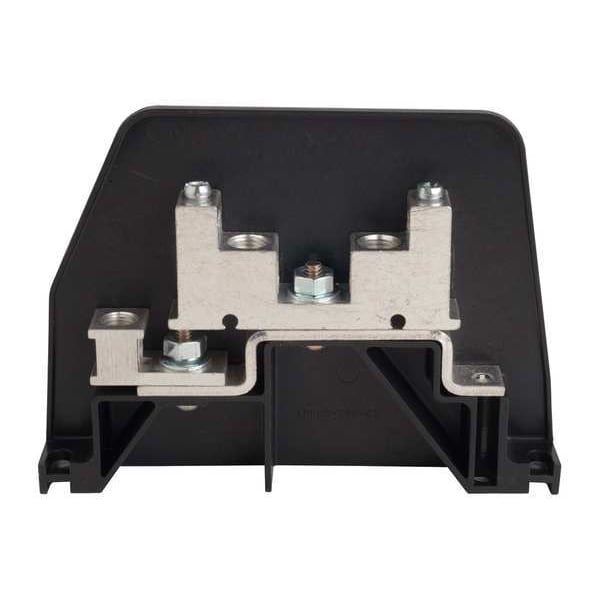

Ensamblaje neutro, 240/600VCA, 30-100A
| Item | Neutral Assembly |
|---|---|
| Amps AC | 30 to 100A |
| Description/Special Features | 14 to 1/0 Al/Cu |
| Voltage | 240/600V AC |
| For Use With | Double Throw Safety Switches Type DT and DTU Series F |
| Standards | UL 98 |
| Maximum Voltage | 600V AC/DC |
| Duty | Heavy Duty |
| Product Type | Neutral Kit |
| Series Name | heavy duty |
| Awg Gauge | AWG 14 to AWG 1/0 copper || AWG 12 to AWG10 aluminium |
| Line Rated Current | 30 A || 100 A |
| Product Or Component Type | safety switch solid neutral assembly |
| Tightening Torque | 50 lb.in, AWG 3 to AWG 1/0, copper or aluminium || 45 lb.in, AWG 6 to AWG 4, copper or aluminium || 40 lb.in, AWG 8, copper or aluminium || 35 lb.in, AWG 12 to AWG10, copper or aluminium || 35 lb.in, AWG 14, copper |
| Package Quantity | 1 |
