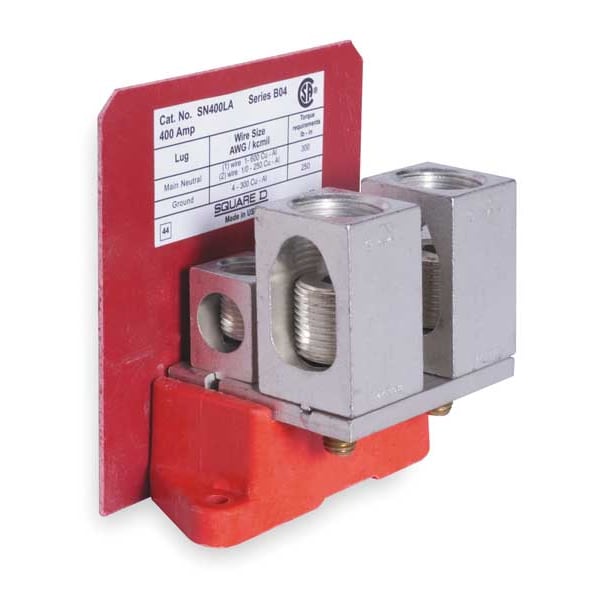

Neutral Assembly Kit, Powerpact H and J-Frame Circuit Breaker Enclosures, 400A
| Item | Neutral Assembly Kit |
|---|---|
| For Use With | Powerpact H and J-Frame Circuit Breaker Enclosures |
| Amps | 400A |
| Main Conductor Size | (1) 1 AWG to 600 Kcmil/(2) 1 AWG to 250 Kcmil |
| Ground Conductor Size | (1) 4 AWG to 300 kcmil/(2) 6 AWG to 250 kcmil |
| Conductor Material | Copper, Aluminum |
| NEMA Rating | 12, 12K, 4, 4X, 5 |
| Includes | Mounting Screws |
| Width | 4.61 in |
| Height | 4.89 in |
| Mounting Style | Surface, Flush |
| Depth | 2.86 in |
| Package Quantity | 1 |
