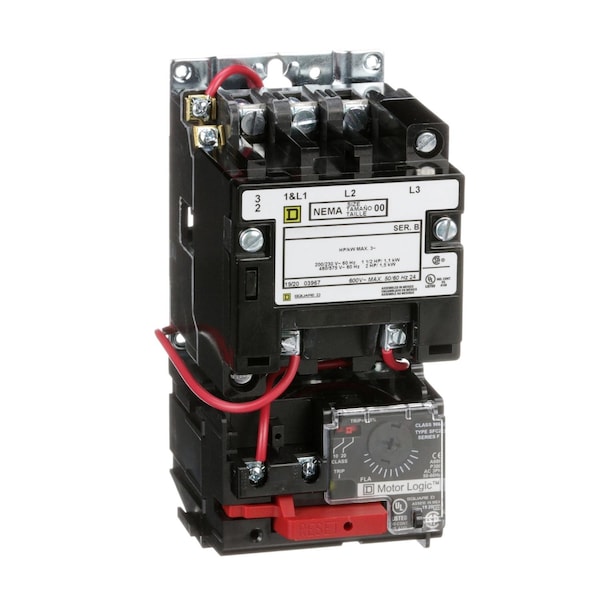

Arrancador no reversible Tamaño 00, de 2 polos, M, 3 polos, 110 a 120V AC, Reversión: No reversible.
| Item | Non-Reversing Starter Size 00,2-Pole,M |
|---|---|
| Number of Poles | 3 |
| Coil Volts | 110 to 120V AC |
| Reversing | Non-Reversing |
| HP @ 3 Phase - 575V | 2 hp |
| Aux. Contact Configuration | No Auxiliary Contacts |
| Enclosure NEMA Rating | Not Rated |
| Standards | UL Listed, CSA, NEMA |
| Depth | 107 mm |
| Width | 82 mm |
| Height | 172 mm |
| Rated Voltage | 600V AC |
| Environmental Attributes | PVC Free |
| Electrical Connection | Screw Clamp Terminals |
| Poles Description | 3P |
| Auxiliary Contact Composition | without |
| Product or Component Type | motor starter |
| Pvc Free | Yes |
| Rated Power In Hp | 1.5 HP 200 V AC, 1.5 HP 230 V AC, 2 HP 460 V AC, 2 HP 575 V AC |
| Nema Degree of Protection | not rated (open device) |
| Control Type | No control units |
| [Ue] Rated Operational Voltage | 600 V AC |
| Local Signalling | without pilot light |
| [Uc] Control Circuit Voltage | 110 V AC 50 Hz, 120 V AC 60 Hz |
| Line Rated Current | 9A |
| Control Circuit | Separate control circuit |
| Range of Product | S |
| Phase | 3 phase |
| Motor Starter Type | non reversing |
| Thermal Overload Type | solid state Motor Logic class 10/20 |
| Nema Size | 0 |
| Package Quantity | 1 |
