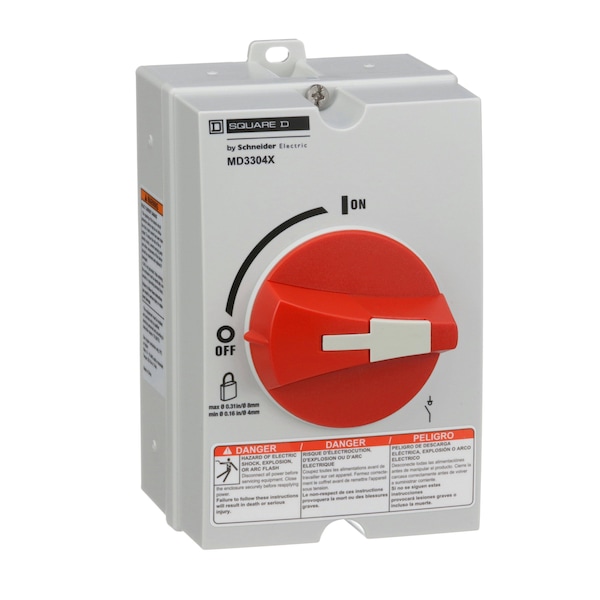

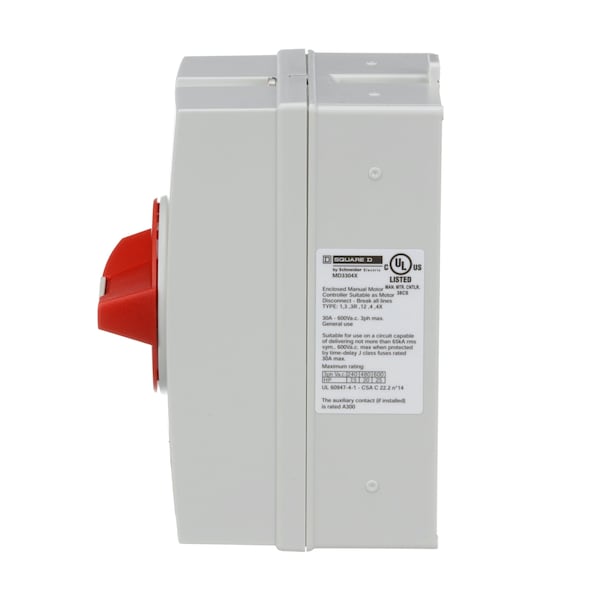

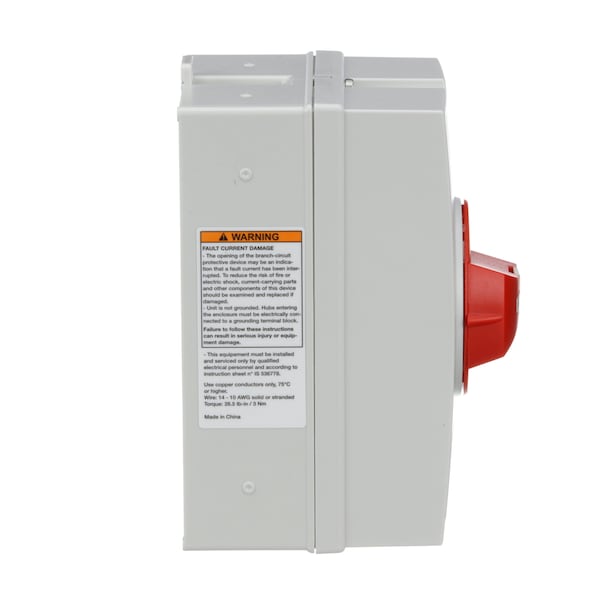

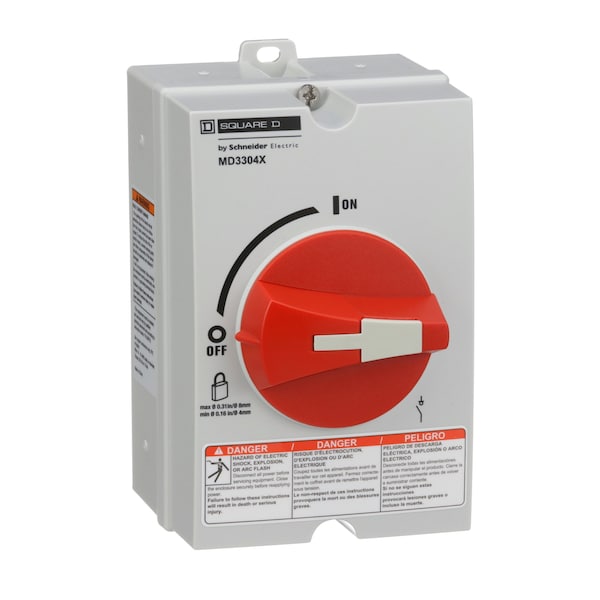

Interruptor de desconexión de un solo polo encapsulado no fusible, 30 A, 220 a 240V CA, 440 a 480V CA, 600V CA.
| Item | Enclosed Single Throw Disconnect Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Amps | 30 |
| Voltage | 220 to 240V AC, 440 to 480V AC, 600V AC |
| Phase | 3 |
| HP | 20 hp @ 440 to 480V AC, 25 hp @ 600V AC, 7.5 hp @ 220 to 240V AC |
| NEMA Enclosure Type | 3R, 4, 12, 4X, 1 |
| IP Rating | 66 |
| Number of Wires | 4 |
| Material | Non-Metallic |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Neutral Assembly Included | Yes |
| Fuse Kit (Class R) | Non-Fusible |
| Height | 6 in |
| Fusible / Nonfusible | Nonfusible |
| Depth | 4.4 in |
| Width | 3.9 in |
| Includes | Red Handle |
| Standards | UL listed |
| Handle Color | Red |
| Enclosure Type | Enclosed |
| Housing Material | Non-Metallic |
| For Fuse Class | Not Applicable |
| Horsepower @ 480V AC | 20 HP |
| NEMA Enclosure Rating | 1, 12, 3, 3R, 4, 4X |
| Current Rating | 30 A |
| Horsepower @ 600V AC | 25 HP |
| For Environment | Indoor, Indoor Rated, Outdoor Rated |
| Horsepower @ 240V AC | 7.5 HP |
| Environment | Indoor, Outdoor |
| Nema Degree Of Protection | NEMA 4X |
| Line Rated Current | 30 A |
| Maximum Horse Power Rating | 7.5 hp 220/240 V AC || 20 hp 440/480 V AC || 25 hp 600 V AC |
| Product Or Component Type | Disconnect Switch |
| Product Certifications | UL Listed |
| Products By Industry | Electrical;Fabricated Metals |
| Package Quantity | 1 |
