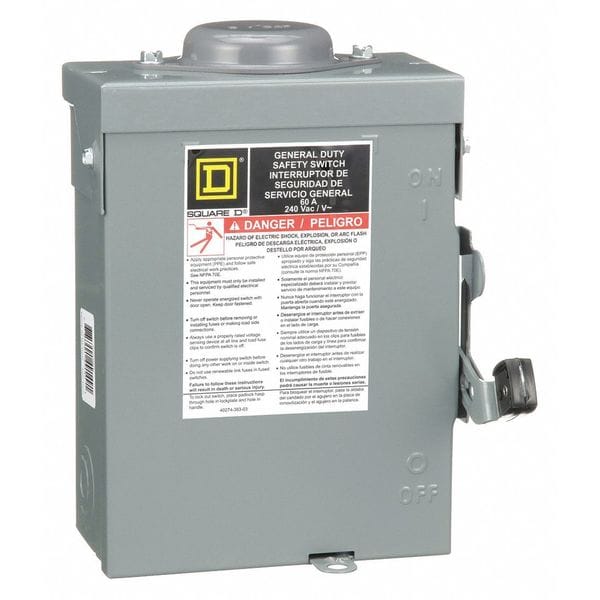

Interruptor de seguridad no fusible, deber general, 240V CA, 2PST, 60 A, NEMA 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 1 |
| HP | 10 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL listed |
| Width | 7.7 in |
| Depth | 3.8 in |
| Height | 9.6 in |
| Electrical Connection | Lugs |
| Gauge/Conductor | 12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper) |
| Mounting | Surface |
| Enclosure Type | Enclosed |
| Features | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Weight | 7.7 kg |
| Neutral Assembly Included | No |
| Horsepower @ 240V AC | 10 HP |
| Environment | Indoor, Outdoor |
| For Fuse Class | Not Applicable |
| Current Rating | 60 A |
| Housing Material | Steel |
| NEMA Enclosure Rating | 3R |
| Mounting Style | Surface Mount |
| Motor Power HP | 10 hp at 240 V AC 60 Hz for 1 phase motors |
| Duty Rating | General duty |
| Wire Size | AWG 12 to AWG 3 aluminium; AWG 14 to AWG 3 copper |
| Device Application | Residential |
| Disconnect Type | disconnect switch |
| Factory Installed Neutral | None |
| Enclosure Rating NEMA | NEMA 3R |
| Wiring Configuration | 2 wires |
| Voltage Rating | 240 V AC |
| Tightening Torque | 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.08 to 5.26 mm²) (AWG 14 to AWG 10); 35 lbf.in (3.95 N.m) (AWG 14 to AWG 10); 45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 in² (12.3 to 21.12 mm²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) 0.04 in² (26.67 mm²) (AWG 3) |
| Certifications | UL listed file E2875 |
| Package Quantity | 1 |
