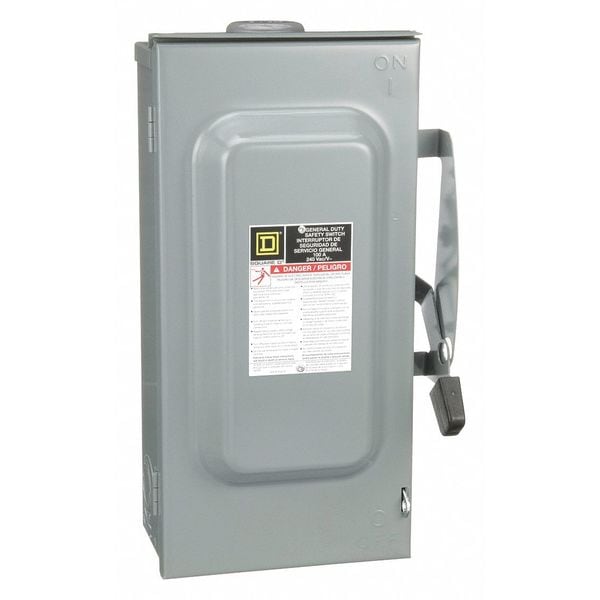

Interruptor de seguridad no fusible, deber general, 240V AC, 3PST, 100 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 30 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Standards | UL listed |
| Fusible / Nonfusible | Nonfusible |
| Width | 10-1/2 in |
| Height | 17-1/2 in |
| Depth | 6-1/2 in |
| Neutral Assembly Included | No |
| Enclosure Type | Enclosed |
| Mounting | Surface |
| Electrical Connection | Lugs |
| Weight | 7 kg |
| Features | Mercury Free, PVC Free |
| Gauge/Conductor | 12 to 1 AWG (Aluminum), 14 to 1 AWG (Copper) |
| Horsepower @ 240V AC | 30 HP |
| Environment | Indoor, Outdoor |
| NEMA Enclosure Rating | 3R |
| Mounting Style | Surface Mount |
| Housing Material | Steel |
| Current Rating | 100 A |
| For Fuse Class | Not Applicable |
| Package Quantity | 1 |
