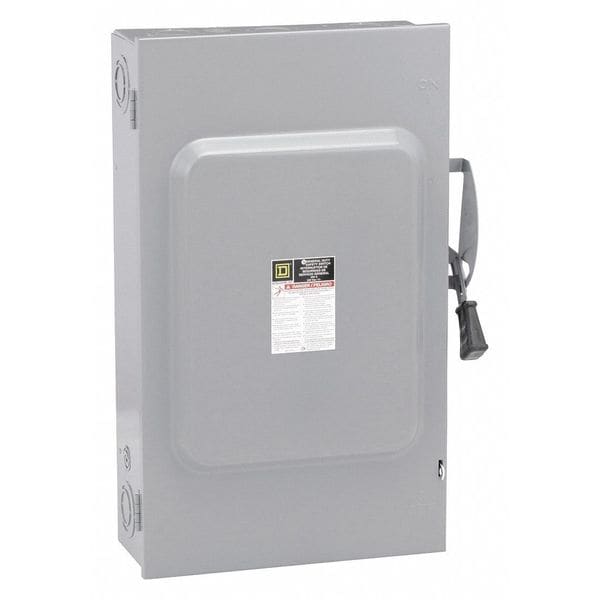

Interruptor de seguridad no fusible, uso general, 240V AC, 3PST, 200 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 60 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 200 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Height | 29 in |
| Fusible / Nonfusible | Nonfusible |
| Depth | 8.3 in |
| Standards | UL listed |
| Width | 19 in |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Gauge/Conductor | 6 AWG to 250 kcmil |
| Weight | 23.59 kg |
| Features | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Neutral Assembly Included | No |
| Enclosure Type | Enclosed |
| Housing Material | Steel |
| For Fuse Class | Not Applicable |
| Environment | Indoor |
| Horsepower @ 240V AC | 60 HP |
| Current Rating | 200 A |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 1 |
| Package Quantity | 1 |
