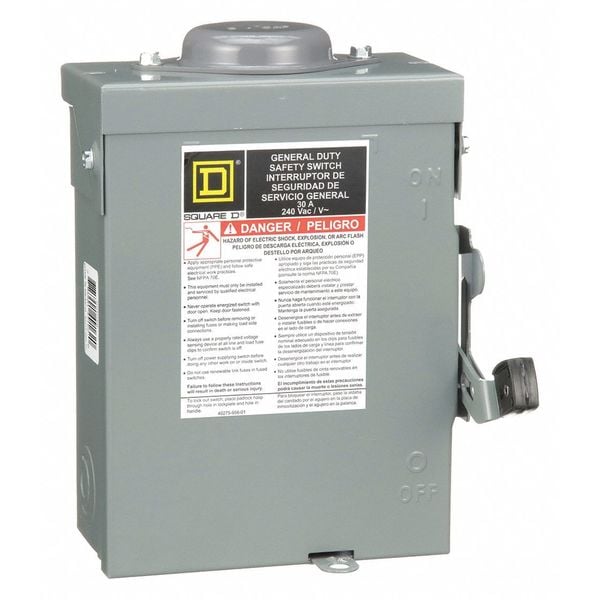

Interruptor de Seguridad No Fusible, Deber General, 240V AC, 3PST, 30 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | General |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 7-1/2 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Width | 7.7 in |
| Depth | 3.8 in |
| Height | 9.6 in |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL listed |
| Neutral Assembly Included | No |
| Gauge/Conductor | 12 to 6 AWG (Aluminum), 14 to 6 AWG (Copper) |
| Enclosure Type | Enclosed |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Weight | 9 kg |
| Features | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| NEMA Enclosure Rating | 3R |
| For Fuse Class | Not Applicable |
| Horsepower @ 240V AC | 7.5 HP |
| Environment | Indoor, Outdoor |
| Mounting Style | Surface Mount |
| Current Rating | 30 A |
| Housing Material | Steel |
| Voltage Rating | 240 V AC |
| Wiring Configuration | 3-wire |
| Certifications | UL listed file E2875 |
| Factory Installed Neutral | None |
| Tightening Torque | 30 lbf.in (3.39 N.m) 0.00 to 0.02 in² (2.08 to 13.3 mm²) (AWG 14 to AWG 6) |
| Disconnect Type | disconnect switch |
| Enclosure Rating NEMA | NEMA 3R |
| Device Application | Residential |
| Motor Power HP | 3 hp at 240 V AC 60 Hz for 1 phase motors; 7.5 hp at 240 V AC 60 Hz for 3 phase motors |
| Wire Size | AWG 14 to AWG 6 copper; AWG 12 to AWG 6 aluminium |
| Duty Rating | General duty |
| Package Quantity | 1 |
