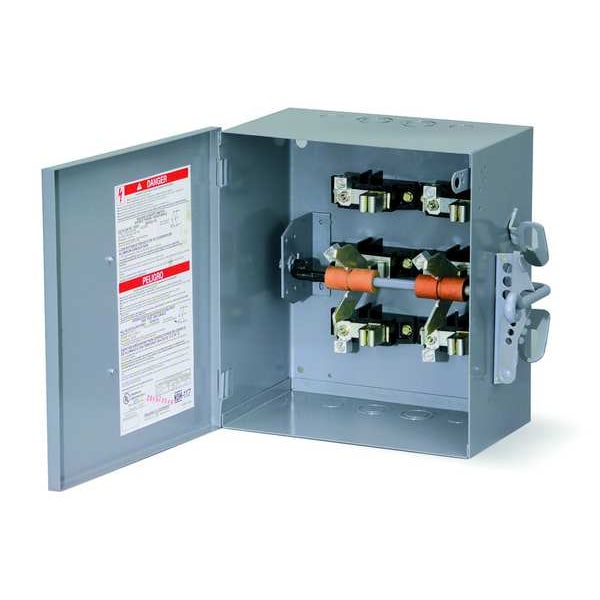

Interruptor de seguridad no fusible, servicio pesado, 240V CA, 2PDT, 30 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 240V AC |
| Phase | 1 |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PDT |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Depth | 4.8 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 8 in |
| Height | 10 in |
| Fuse Type | Class H or K |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Weight | 3.44 kg |
| Gauge/Conductor | 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper) |
| Neutral Assembly Included | No |
| Mounting | Surface |
| Mounting Style | Surface Mount |
| For Fuse Class | Not Applicable |
| Housing Material | Steel |
| Environment | Indoor |
| Current Rating | 30 A |
| NEMA Enclosure Rating | 1 |
| Duty Rating | General duty |
| Enclosure Rating | NEMA 1 |
| Tightening Torque | 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.08 to 5.26 mm²) (AWG 14 to AWG 10); 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.03 in² (13.3 to 21.15 mm²) (AWG 6 to AWG 4); 50 lbf.in (5.65 N.m) 0.04 to 0.05 in² (26.67 to 33.62 mm²) (AWG 3 to AWG 2) |
| Disconnect Type | Non-fusible disconnect |
| Factory Installed Neutral | None |
| Short-Circuit Current | 10 kA H or K |
| Voltage Rating | 240 V AC |
| Wire Size | AWG 12 to AWG 2 aluminium; AWG 14 to AWG 2 copper |
| Package Quantity | 1 |
