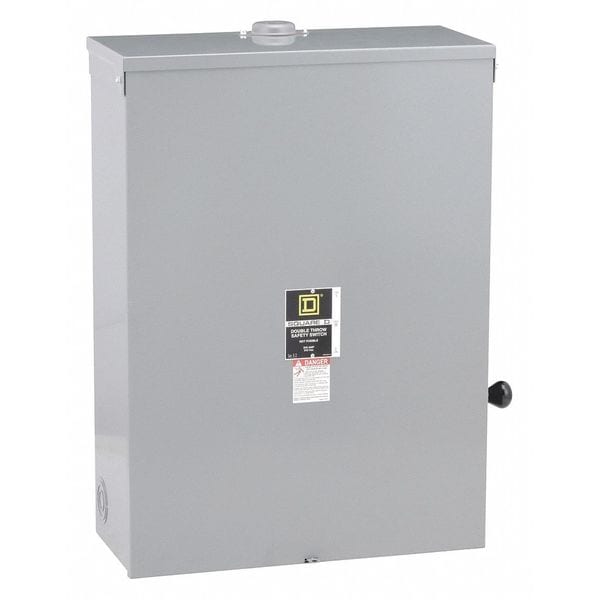

Interruptor de seguridad no fusible, servicio pesado, 240V CA, 3PDT, 200 A, NEMA 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 240V AC |
| Phase | 3 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PDT |
| Amps AC | 200 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Depth | 10.6 in |
| Width | 26.2 in |
| Fusible / Nonfusible | Nonfusible |
| Height | 32-1/2 in |
| Fuse Type | Class H or K |
| Neutral Assembly Included | Yes |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Weight | 35.38 kg |
| Gauge/Conductor | 6 AWG to 300 kcmil |
| Mounting | Surface |
| For Fuse Class | Not Applicable |
| Horsepower @ 240V AC | 15 HP |
| Housing Material | Steel |
| Current Rating | 200 A |
| NEMA Enclosure Rating | 3 |
| Mounting Style | Surface Mount |
| Includes Neutral Assembly | Yes |
| Environment | Indoor, Outdoor |
| Package Quantity | 1 |
