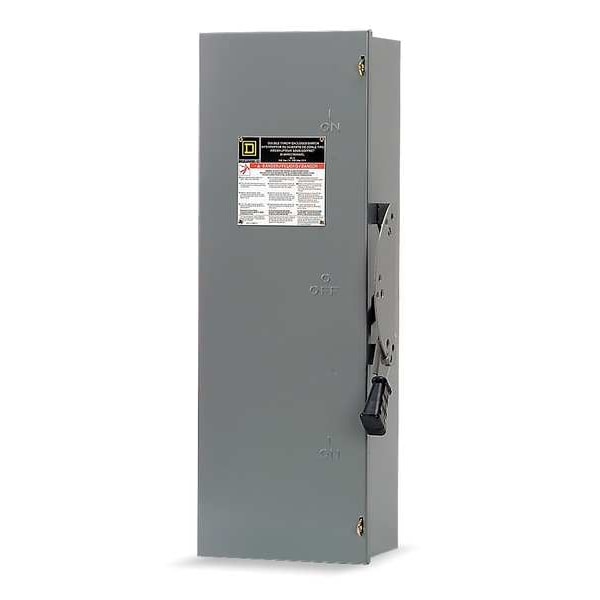

Interruptor de seguridad no fusible, resistente, 240V CA/CD, 2PDT, 100 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 240V AC/DC |
| Phase | 1 |
| HP | 15 HP @ 240 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PDT |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL listed |
| Depth | 7 in |
| Height | 30 in |
| Width | 12 in |
| Fuse Type | Class H, K, R, J or T |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Weight | 19.96 kg |
| Neutral Assembly Included | No |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Mounting | Surface |
| Current Rating | 100 A |
| Housing Material | Steel |
| Horsepower @ 240V AC | 15 HP |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 1 |
| For Fuse Class | Not Applicable |
| Environment | Indoor |
| Disconnect Type | disconnect switch |
| Duty Rating | Heavy duty |
| Motor Power HP | 15 hp at 240 V AC 50-60 Hz for 1 phase motors; 20 hp at 250 V DC |
| Enclosure Rating | NEMA 1 |
| Wire Size | AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper |
| Voltage Rating | 240 V AC, 250 V DC |
| Short-Circuit Current | 10 kA H or K; 200 kA R, J or T |
| Tightening Torque | 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.06 to 5.26 mm²) (AWG 14 to AWG 1/0); 40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8); 45 lbf.in (5.08 N.m) 0.02 to 0.08 in² (13.30 to 53.48 mm²) (AWG 8); 50 lbf.in (5.65 N.m) 0.04 to 0.08 in² (26.67 to 53.48 mm²) (AWG 6 to AWG 4) |
| Factory Installed Neutral | None |
| Package Quantity | 1 |
