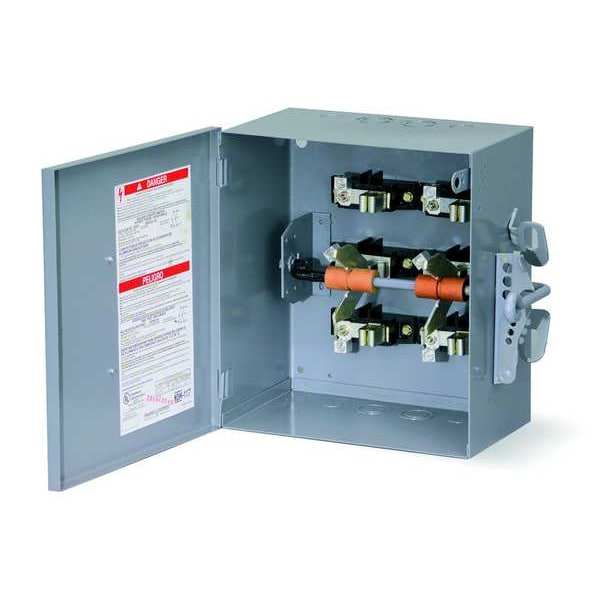

Interruptor de seguridad no fusible, trabajo pesado, 480V AC, 3 polos, 200 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 480V AC |
| Phase | 3 |
| HP | 15 HP @ 480 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PDT |
| Amps AC | 200 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Height | 30.9 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 23.9 in |
| Depth | 11.8 in |
| Fuse Type | Class H or J |
| Mounting | Surface |
| Weight | 29.06 kg |
| Neutral Assembly Included | No |
| Gauge/Conductor | 6 AWG to 300 kcmil |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Environment | Indoor |
| Horsepower @ 480V AC | 15 HP |
| Housing Material | Steel |
| For Fuse Class | Not Applicable |
| Number of Locks | 2 |
| Mounting Style | Surface Mount |
| NEMA Enclosure Rating | 1 |
| Current Rating | 200 A |
| Package Quantity | 1 |
