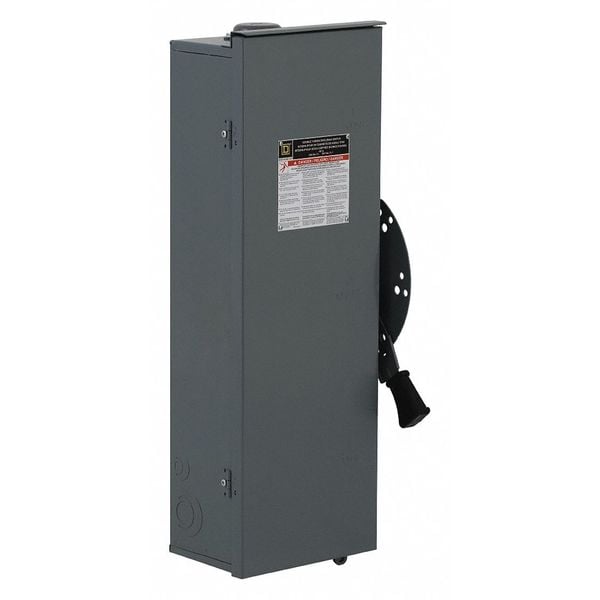

Interruptor de Seguridad no Fusible, de Uso Pesado, 600V AC, 3PDT, 30 A, NEMA 3R
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 30 HP @ 600 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PDT |
| Amps AC | 30 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Copper, Insulating Plastic, Steel |
| Fusible / Nonfusible | Nonfusible |
| Depth | 6.9 in |
| Standards | UL listed |
| Width | 12 in |
| Height | 30-1/2 in |
| Fuse Type | Class H, K, R, J or T |
| Neutral Assembly Included | No |
| Weight | 18.37 kg |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Gauge/Conductor | 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper) |
| Mounting | Surface |
| Current Rating | 30 A |
| Mounting Style | Surface Mount |
| Environment | Indoor, Outdoor |
| Horsepower @ 480V AC | 20 HP |
| Housing Material | Copper, Plastic, Steel |
| Horsepower @ 600V AC | 30 HP |
| For Fuse Class | Not Applicable |
| NEMA Enclosure Rating | 3 |
| Horsepower @ 240V AC | 10 HP |
| Package Quantity | 1 |
