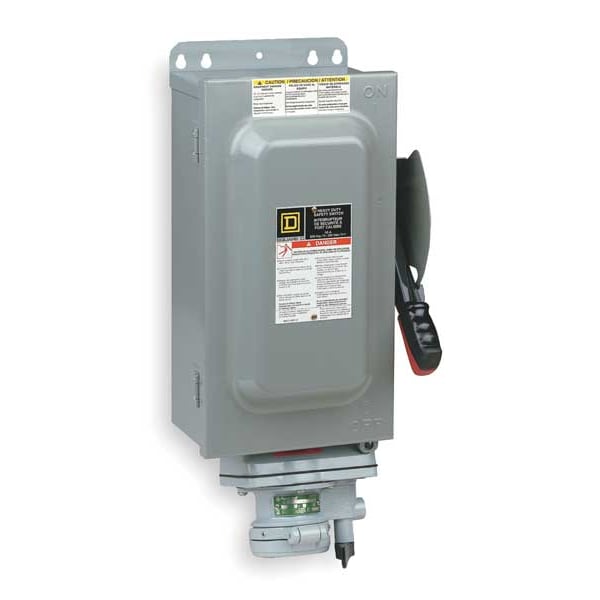

Interruptor de seguridad no fusible, de servicio pesado, 600V CA, 3 polos, 100 A, NEMA 12, 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 75 HP @ 600 V AC |
| NEMA Enclosure Type | 3R, 12 |
| IP Rating | Not Rated |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Fusible / Nonfusible | Nonfusible |
| Height | 20-1/2 in |
| Width | 10-1/2 in |
| Standards | UL listed |
| Depth | 7 in |
| Enclosure Type | Enclosed |
| Electrical Connection | Receptacle |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Features | Crouse-Hinds Arktite(R) Compatible Receptacle |
| Mounting | Surface |
| Current Rating | 100 A |
| Environment | Indoor |
| NEMA Enclosure Rating | 12K |
| Housing Material | Steel |
| Mounting Style | Surface Mount |
| For Fuse Class | Not Applicable |
| Horsepower @ 600V AC | 100 HP |
| Horsepower @ 480V AC | 75 HP |
| Includes Interlocked Receptacle | Yes |
| Package Quantity | 1 |
