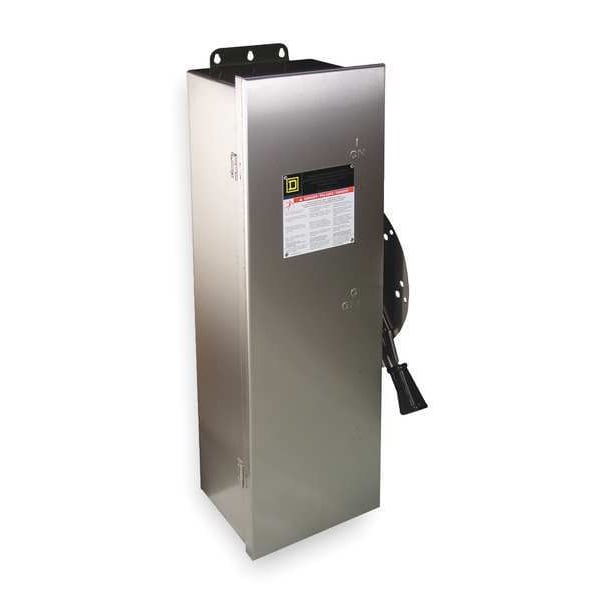

Interruptor de seguridad no fusible, alta resistencia, 600V CA, 3PST, 100 A, NEMA 4, 4X, 5
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 75 HP @ 600 V AC |
| NEMA Enclosure Type | 4X, 4, 5 |
| IP Rating | Not Rated |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Stainless Steel |
| Width | 10.7 in |
| Depth | 7.1 in |
| Fusible / Nonfusible | Nonfusible |
| Height | 23.2 in |
| Standards | UL listed |
| Includes | Mechanically Interlocked Switch |
| Mounting | Surface |
| Neutral Assembly Included | No |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Weight | 10.13 kg |
| Features | Mercury Free, PVC Free |
| NEMA Enclosure Rating | 4, 4X, 5 |
| Housing Material | Stainless Steel |
| Mounting Style | Surface Mount |
| Environment | Indoor, Outdoor |
| Horsepower @ 600V AC | 100 HP |
| Horsepower @ 480V AC | 75 HP |
| For Fuse Class | Not Applicable |
| Current Rating | 100 A |
| Horsepower @ 240V AC | 40 HP |
| Package Quantity | 1 |
