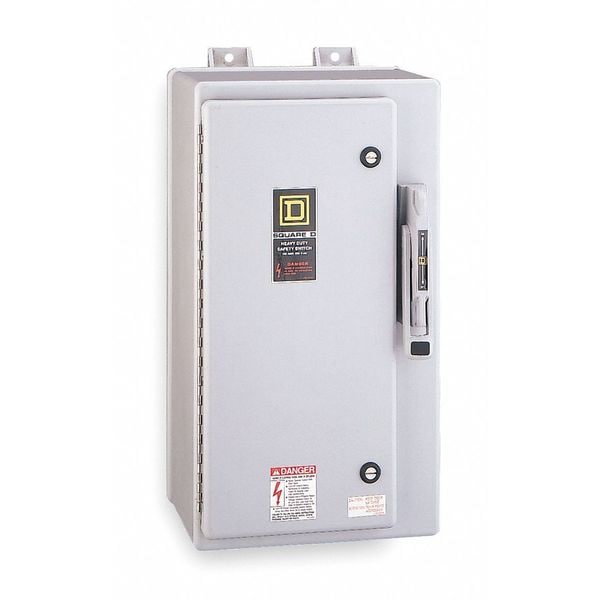

Interruptor de seguridad sin fusible, de servicio pesado, 600V AC, 3PST, 100 A, NEMA 4X
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 75 HP @ 600 V AC |
| NEMA Enclosure Type | 4X |
| IP Rating | 66 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Fiberglass Reinforced Polyester |
| Fusible / Nonfusible | Nonfusible |
| Depth | 12 in |
| Height | 24.8 in |
| Standards | UL listed |
| Width | 13.7 in |
| Neutral Assembly Included | No |
| Weight | 18.14 kg |
| Electrical Connection | Lugs |
| Features | Mercury Free, PVC Free |
| Mounting | Surface |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Enclosure Type | Enclosed |
| For Fuse Class | Not Applicable |
| NEMA Enclosure Rating | 4X |
| Mounting Style | Surface Mount |
| Housing Material | Fiberglass Reinforced Polyester |
| Horsepower @ 600V AC | 100 HP |
| Horsepower @ 480V AC | 75 HP |
| Environment | Indoor, Outdoor |
| Current Rating | 100 A |
| Duty Rating | Heavy duty |
| Tightening Torque | 50 lbf.in (5.65 N.m) (AWG 1 to AWG 3/0); 45 lbf.in (5.08 N.m) (AWG 6 to AWG 4); 40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8); 35 lbf.in (3.95 N.m) 0.00 to 0.01 in² (2.06 to 5.261 mm²) (AWG 14 to AWG 10) |
| Wiring Configuration | 3-wire |
| Certifications | UL listed file E2875 |
| Enclosure Rating | NEMA 4X fiberglass reinforced polyester |
| Device Application | Heavy application |
| Wire Size | AWG 12 to AWG 1/0 aluminium; AWG 14 to AWG 1/0 copper |
| Disconnect Type | Non-fusible disconnect |
| Factory Installed Neutral | None |
| Voltage Rating | 600 V AC/DC |
| Motor Power HP | 75 hp at 480 V AC 50-60 Hz for 3 phase motors; 100 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 600 V DC |
| Package Quantity | 1 |
