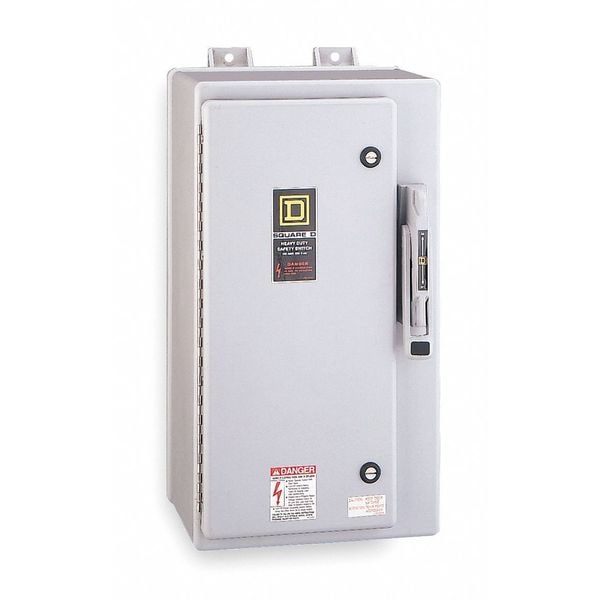

Interruptor de seguridad no fusible, servicio pesado, 600V CA, 3PST, 200 A, NEMA 4X.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 125 HP @ 600 V AC |
| NEMA Enclosure Type | 4X |
| IP Rating | 66 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 200 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Fiberglass Reinforced Polyester |
| Standards | UL listed |
| Height | 31.3 in |
| Depth | 11.8 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 26.3 in |
| Neutral Assembly Included | No |
| Mounting | Surface |
| Enclosure Type | Enclosed |
| Gauge/Conductor | 6 AWG to 250 kcmil |
| Features | Mercury Free, PVC Free, Toxic Heavy Metal Free |
| Weight | 40.37 kg |
| Electrical Connection | Lugs |
| Horsepower @ 240V AC | 10 HP |
| For Fuse Class | Not Applicable |
| Housing Material | Fiberglass Reinforced Polyester |
| Current Rating | 200 A |
| Horsepower @ 600V AC | 150 HP |
| Mounting Style | Surface Mount |
| Environment | Indoor, Outdoor |
| Horsepower @ 480V AC | 125 HP |
| NEMA Enclosure Rating | 4X |
| Package Quantity | 1 |
