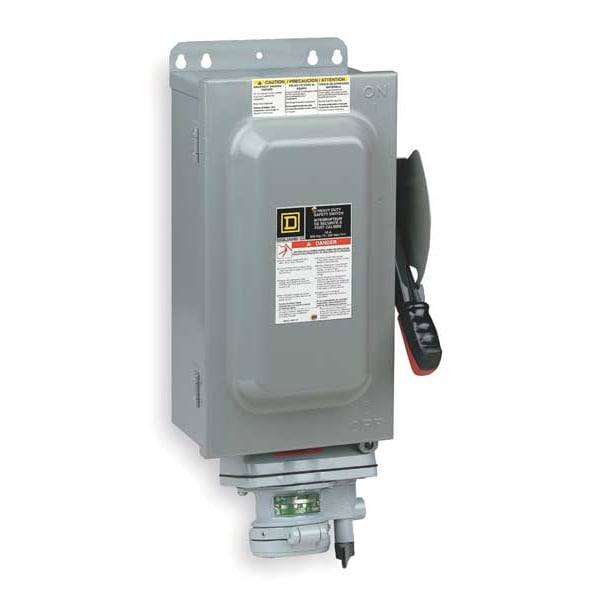

Interruptor de seguridad no fusible, trabajo pesado, 600V CA, 3PST, 60 A, NEMA 12.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 50 HP @ 600 V |
| NEMA Enclosure Type | 12 |
| IP Rating | 52 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Depth | 7 in |
| Fusible / Nonfusible | Nonfusible |
| Height | 16-1/2 in |
| Standards | UL listed |
| Width | 10-1/2 in |
| Mounting | Surface |
| Features | Hubbellock(R) Compatible Receptacle |
| Gauge/Conductor | 12 to 2 AWG (Aluminum), 14 to 2 AWG (Copper) |
| Electrical Connection | Receptacle |
| Enclosure Type | Enclosed |
| Horsepower @ 600V AC | 60 HP |
| Includes Interlocked Receptacle | Yes |
| Mounting Style | Surface Mount |
| Housing Material | Steel |
| NEMA Enclosure Rating | 12K |
| Horsepower @ 480V AC | 50 HP |
| Environment | Indoor |
| Horsepower @ 240V AC | 10 HP |
| For Fuse Class | Not Applicable |
| Current Rating | 60 A |
| Package Quantity | 1 |
