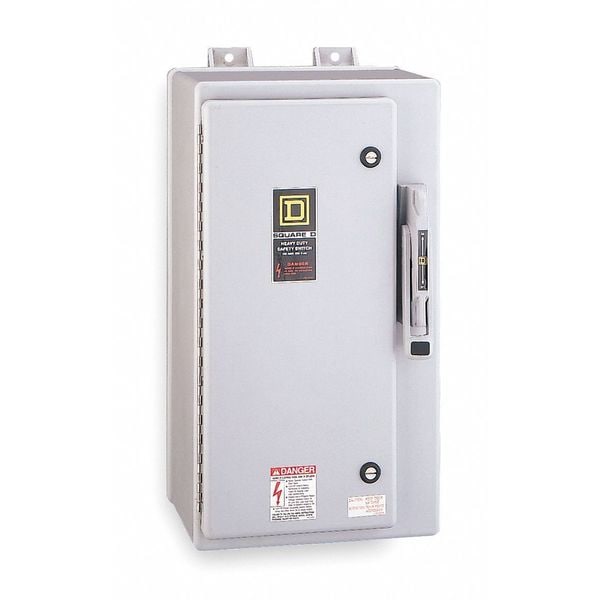

Interruptor de seguridad no fusible, servicio pesado, 600V CA, 3 polos, 60 A, NEMA 4X.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 50 HP @ 600 V AC |
| NEMA Enclosure Type | 4X |
| IP Rating | 66 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 60 A |
| Metallic / Non-Metallic | Non-Metallic |
| Material of Construction | Krydon (Fiberglass Reinforced Polyester) |
| Depth | 8.6 in |
| Width | 11.4 in |
| Height | 19.4 in |
| Standards | UL listed |
| Fusible / Nonfusible | Nonfusible |
| Weight | 17.2 kg |
| Features | Mercury Free, PVC Free |
| Electrical Connection | Lugs |
| Enclosure Type | Enclosed |
| Mounting | Surface |
| Neutral Assembly Included | No |
| Gauge/Conductor | 12 to 3 AWG (Aluminum), 14 to 3 AWG (Copper) |
| Mounting Style | Surface Mount |
| Horsepower @ 600V AC | 60 HP |
| Horsepower @ 240V AC | 15 HP |
| For Fuse Class | Not Applicable |
| NEMA Enclosure Rating | 4X |
| Horsepower @ 480V AC | 50 HP |
| Housing Material | Krydon |
| Current Rating | 60 A |
| Environment | Indoor, Outdoor |
| Package Quantity | 1 |
