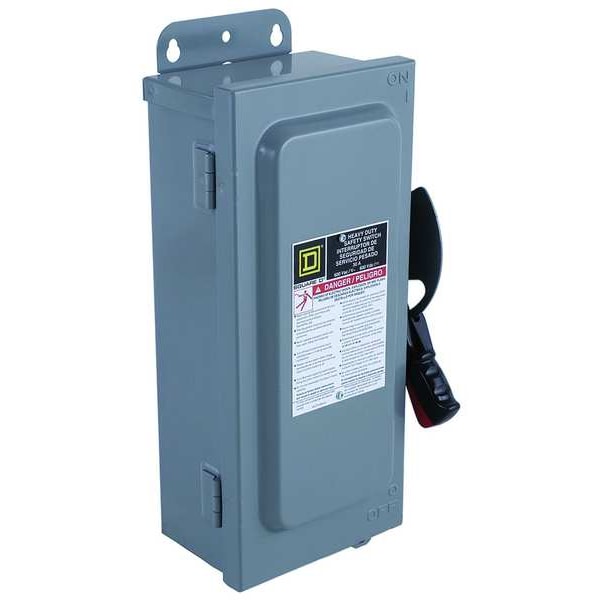

Interruptor de seguridad no fusible, alta resistencia, 600V CA, 3 polos, 600 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 400 HP @ 600 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 600 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Height | 50.2 in |
| Width | 27.6 in |
| Depth | 10.1 in |
| Fusible / Nonfusible | Nonfusible |
| Electrical Connection | Lugs |
| Features | Mercury Free, PVC Free |
| Mounting | Surface |
| Gauge/Conductor | 3/0 AWG to 500 kcmil |
| Neutral Assembly Included | No |
| Weight | 79.4 kg |
| Environment | Indoor |
| Horsepower @ 240V AC | 200 HP |
| NEMA Enclosure Rating | 1 |
| For Fuse Class | Not Applicable |
| Horsepower @ 600V AC | 500 HP |
| Mounting Style | Surface Mount |
| Housing Material | Steel |
| Horsepower @ 480V AC | 400 HP |
| Current Rating | 600 A |
| Package Quantity | 1 |
