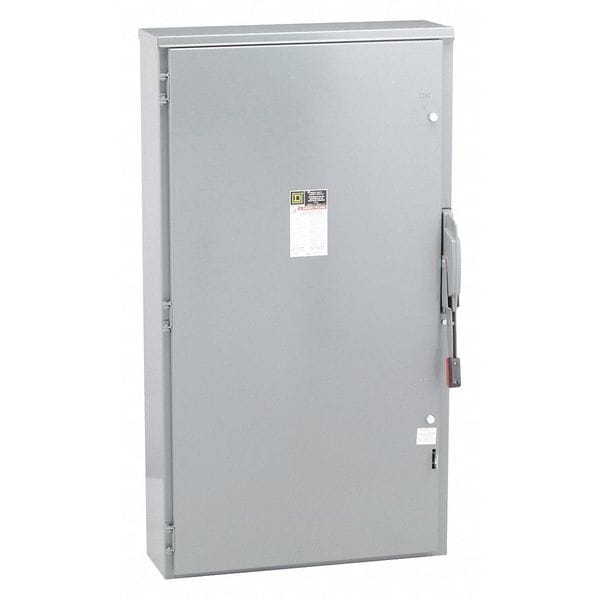

Interruptor de seguridad no fusible, servicio pesado, 600V AC, 3PST, 600 A, NEMA 3R.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 400 HP @ 600 V AC |
| NEMA Enclosure Type | 3R |
| IP Rating | 14 |
| Number of Wires | 3 |
| Number of Poles | 3 |
| Contact Form | 3PST |
| Amps AC | 600 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Galvannealed Steel |
| Standards | UL listed |
| Fusible / Nonfusible | Nonfusible |
| Width | 27.9 in |
| Height | 50.3 in |
| Depth | 9-1/2 in |
| Weight | 88.5 kg |
| Features | Mercury Free, PVC Free |
| Gauge/Conductor | 3/0 AWG to 500 kcmil |
| Neutral Assembly Included | No |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Horsepower @ 480V AC | 400 HP |
| Horsepower @ 600V AC | 500 HP |
| Housing Material | Steel |
| Mounting Style | Surface Mount |
| For Fuse Class | Not Applicable |
| Environment | Indoor, Outdoor |
| NEMA Enclosure Rating | 3R |
| Current Rating | 600 A |
| Horsepower @ 240V AC | 200 HP |
| Voltage Rating | 600 V AC/DC |
| Wire Size | AWG 3/0 to 500 kcmil copper or aluminium |
| Wiring Configuration | 3-wire |
| Factory Installed Neutral | None |
| Tightening Torque | 375 lbf.in (42.37 N.m) (AWG 3/0 to 500 kcmil) |
| Device Application | Heavy application |
| Motor Power HP | 200 hp at 240 V AC 50-60 Hz for 3 phase motors; 400 hp at 480 V AC 50-60 Hz for 3 phase motors; 500 hp at 600 V AC 50-60 Hz for 3 phase motors; 50 hp at 250 V DC; 50 hp at 600 V DC |
| Disconnect Type | Non-fusible disconnect |
| Certifications | UL listed file E2875 |
| Duty Rating | Heavy duty |
| Enclosure Rating | NEMA 3R galvannealed steel |
| Package Quantity | 1 |
