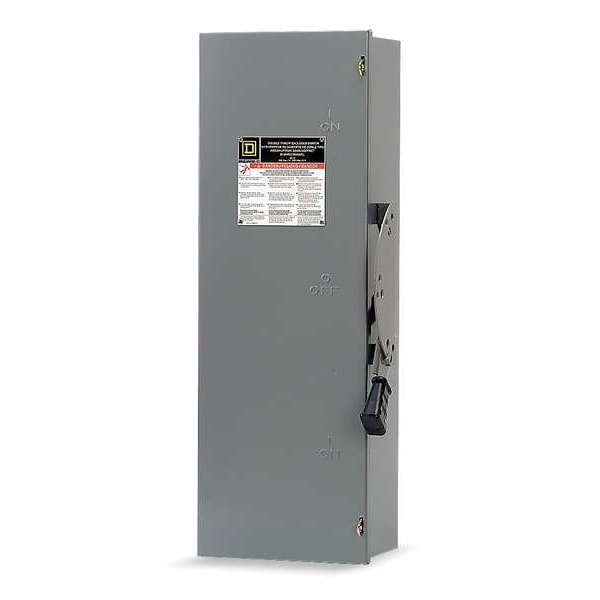

Interruptor de seguridad no fusible, de servicio pesado, 600V CA, 4PDT, 100 A, NEMA 1.
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC |
| Phase | 3 |
| HP | 75 HP @ 600 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 4 |
| Number of Poles | 4 |
| Contact Form | 4PDT |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Copper, Insulating Plastic, Steel |
| Fusible / Nonfusible | Nonfusible |
| Height | 29.9 in |
| Depth | 6.9 in |
| Standards | UL listed |
| Width | 12 in |
| Fuse Type | Class H, K, R, J or T |
| Mounting | Surface |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Features | Mercury Free, Toxic Heavy Metal Free |
| Weight | 25.86 kg |
| Neutral Assembly Included | No |
| NEMA Enclosure Rating | 1 |
| Current Rating | 100 A |
| Mounting Style | Surface Mount |
| Horsepower @ 240V AC | 40 HP |
| Housing Material | Copper, Plastic, Steel |
| Horsepower @ 480V AC | 75 HP |
| Horsepower @ 600V AC | 100 HP |
| Environment | Indoor |
| For Fuse Class | Not Applicable |
| Package Quantity | 1 |
