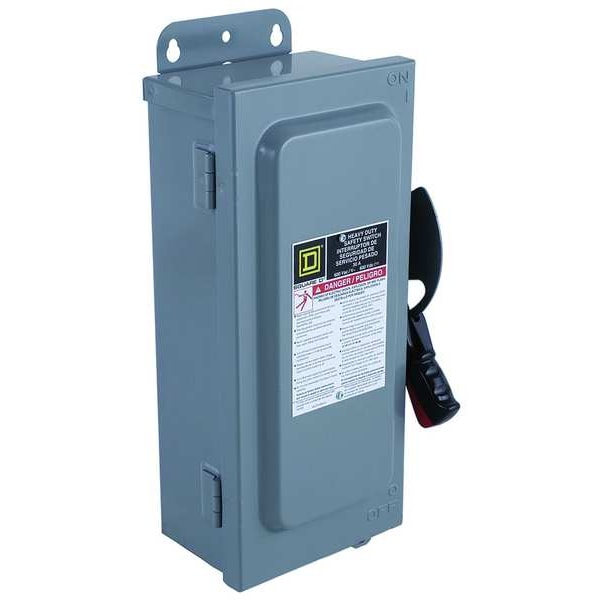

Interruptor de seguridad no fusible, servicio pesado, 600V CA/CC, 2 polos, 400 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC/DC |
| Phase | 1 |
| HP | 50 hp @ 250/600V DC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 2 |
| Number of Poles | 2 |
| Contact Form | 2PST |
| Amps AC | 400 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Standards | UL listed |
| Height | 50.2 in |
| Depth | 10.1 in |
| Fusible / Nonfusible | Nonfusible |
| Width | 27.6 in |
| Features | Mercury Free, PVC Free |
| Electrical Connection | Lugs |
| Mounting | Surface |
| Neutral Assembly Included | No |
| Gauge/Conductor | 1/0 AWG to 750 kcmil |
| Weight | 77.1 kg |
| Horsepower @ 480V AC | 250 HP |
| Housing Material | Steel |
| Environment | Indoor |
| NEMA Enclosure Rating | 1 |
| Mounting Style | Surface Mount |
| For Fuse Class | Not Applicable |
| Horsepower @ 600V AC | 500 HP |
| Horsepower @ 240V AC | 125 HP |
| Current Rating | 400 A |
| Package Quantity | 1 |
