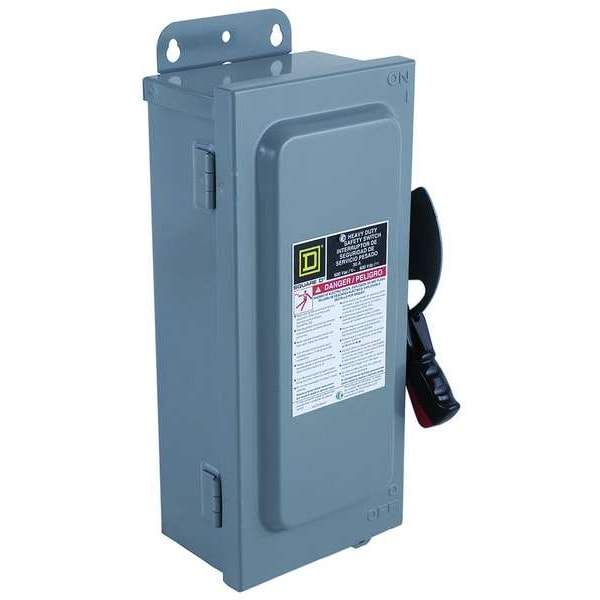

Interruptor de seguridad no fusible, resistente, 600V CA/CC, 4PST, 100 A, NEMA 1
| Item | Safety Switch |
|---|---|
| Protection Method | Nonfusible |
| Duty | Heavy |
| Voltage | 600V AC/DC |
| Phase | 1 |
| HP | 40 HP @ 240 V AC, 75 HP @ 480 V AC, 75 HP @ 600 V AC |
| NEMA Enclosure Type | 1 |
| IP Rating | 20 |
| Number of Wires | 4 |
| Number of Poles | 4 |
| Contact Form | 4PST |
| Amps AC | 100 A |
| Metallic / Non-Metallic | Metallic |
| Material of Construction | Steel |
| Fusible / Nonfusible | Nonfusible |
| Standards | UL listed |
| Width | 16.1 in |
| Depth | 6.8 in |
| Height | 20-1/2 in |
| Gauge/Conductor | 12 to 1/0 AWG (Aluminum), 14 to 1/0 AWG (Copper) |
| Mounting | Surface |
| Electrical Connection | Lugs |
| Weight | 13 kg |
| Neutral Assembly Included | No |
| Features | Mercury Free, PVC Free |
| For Fuse Class | Not Applicable |
| Environment | Indoor |
| Horsepower @ 240V AC | 40 HP |
| Horsepower @ 480V AC | 75 HP |
| Horsepower @ 600V AC | 75 HP |
| Mounting Style | Surface Mount |
| Current Rating | 100 A |
| NEMA Enclosure Rating | 1 |
| Housing Material | Steel |
| Package Quantity | 1 |
