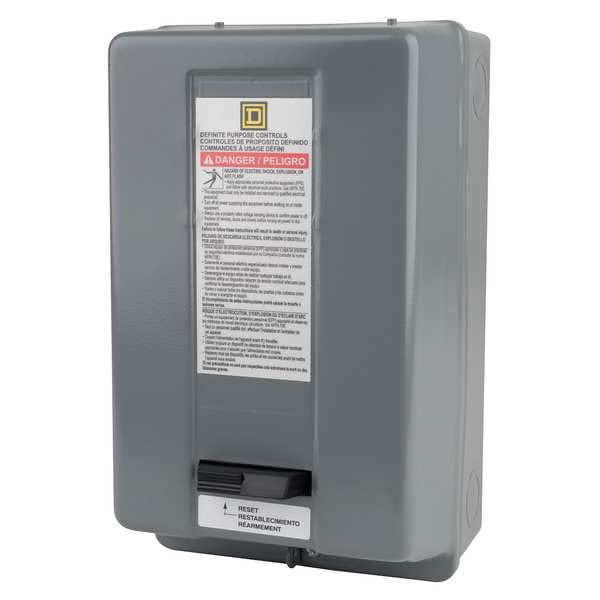

Calificación NEMA No Reversible 1, 208 a 240V CA.
| Item | Definite Purpose Magnetic Motor Starter |
|---|---|
| Coil Volts | 208 to 240V AC |
| Enclosure NEMA Rating | 1 |
| HP @ 1 Phase - 240V | 7 1/2 hp |
| Action | Nonreversing |
| Amps AC | 40 A |
| Number of Poles | 2 |
| HP @ 1 Phase - 120V | 3 hp |
| Width | 6 in |
| Depth | 5.56 in |
| Thermal Unit Code | E4 |
| Hz | 50/60 |
| Standards | REACH, RoHS, UL Listed |
| Includes | Trip-Free Reset Mechanism |
| Height | 10 in |
| Horsepower @ Single Phase - 240V AC | 7.5 HP |
| Overload Protection Type | Melting Alloy |
| Locked Rotor Load | 160 A @ 575V AC, 200 A @ 460V AC, 240 A @ 230V AC |
| Series | Class 8911 Type DP |
| Overall Height | 10 in |
| Mechanical Operating Durability | 500,000 |
| Overall Width | 6 in |
| Frequency | 50/60 Hz |
| Current AC | 40 A |
| Reversing Capability | Non-Reversing |
| Phase | Single |
| NEMA Enclosure Rating | 1 |
| Coil Voltage | 208-240V AC |
| Mounting Hole Distance - Height | 8.13 in |
| Mounting Hole Distance - Width | 4.13 in |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Overall Depth | 5.56 in |
| Package Quantity | 1 |
