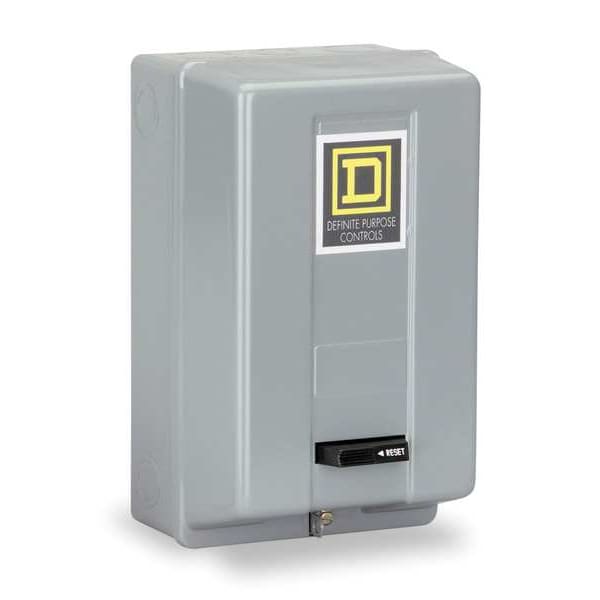

Calificación NEMA de 1 sin inversión, 240V CA.
| Item | Definite Purpose Magnetic Motor Starter |
|---|---|
| Coil Volts | 240 V AC |
| Enclosure NEMA Rating | 1 |
| HP @ 3 Phase - 240V | 15 HP |
| HP @ 1 Phase - 240V | 10 hp |
| HP @ 3 Phase - 575V | 30 HP |
| Action | Nonreversing |
| Amps AC | 50 A |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 30 HP |
| HP @ 1 Phase - 120V | 3 hp |
| Standards | REACH, RoHS, UL Listed |
| Hz | 50/60 |
| Thermal Unit Code | F5 |
| Depth | 5.56 in |
| Height | 10 in |
| Width | 6 in |
| Includes | Trip-Free Reset Mechanism |
| Horsepower @ Three Phase - 240V AC | 15 HP |
| Locked Rotor Load | 200 A @ 575V AC, 250 A @ 460V AC, 300 A @ 230V AC |
| Overall Depth | 5.56 in |
| Horsepower @ Three Phase - 480V AC | 30 HP |
| Mechanical Operating Durability | 500,000 |
| Overload Protection Type | Melting Alloy |
| Overall Height | 10 in |
| Coil Voltage | 208 to 240V AC |
| Phase | Three |
| Series | Class 8911 Type DP |
| Current AC | 50 A |
| Overall Width | 6 in |
| NEMA Enclosure Rating | 1 |
| Mounting Hole Distance - Width | 4.13 in |
| Maximum Voltage Rating | 600 V AC |
| Mounting Hole Distance - Height | 8.13 in |
| Horsepower @ Single Phase - 240V AC | 10 HP |
| Horsepower @ Single Phase - 120V AC | 3 HP |
| Reversing Capability | Non-Reversing |
| Frequency | 50/60 Hz |
| Horsepower @ Three Phase - 600V AC | 30 HP |
| Package Quantity | 1 |
