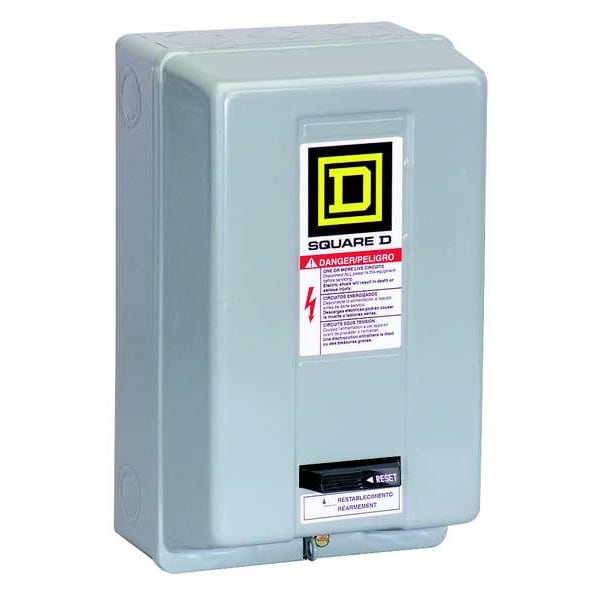

Arrancador magnético no reversible para motor, clasificación NEMA de 1, 120V CA, 2 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| Standards | CSA, UL Listed |
| Depth | 5.56 in |
| Hz | 50/60 |
| HP @ 1 Phase - 230V | 2 hp |
| Width | 6 in |
| Thermal Unit Code | B |
| Height | 10 in |
| Enclosure Type | Painted Steel Sheet |
| Features | Pvc Free |
| Operating Voltage | 600V AC |
| Operator | None |
| Includes Pilot Light | No |
| Overall Width | 6 in |
| Overall Depth | 5.56 in |
| Frequency | 50/60 Hz |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Starter Style | NEMA |
| Minimum Overload Relay Current Setting | Not Applicable |
| Maximum Voltage Rating | 600 V AC |
| Current AC | 18 A |
| Includes Auxiliary Contacts | No |
| NEMA Enclosure Rating | 1 |
| Overall Height | 10 in |
| Terminal Connection Type | Screw Clamp Terminals |
| Overload Protection Type | Thermal |
| Phase | Single |
| Maximum Overload Relay Current Setting | Not Applicable |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| Number of Auxillary Contacts | 0 |
| Operator Function | Not Applicable |
| Reversing Capability | Non-Reversing |
| Coil Voltage | 110/120V AC |
| Control Circuit Type | Separate control circuit |
| Auxiliary Contacts | Without |
| Type Of Overload | Melting alloy 1 |
| Certifications | UL Listed, CSA, NEMA |
| Control Units | No control units |
| Pilot Light | Without pilot light |
| Horsepower Rating | 1 HP 115 V AC; 2 HP 230 V AC |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Package Quantity | 1 |
