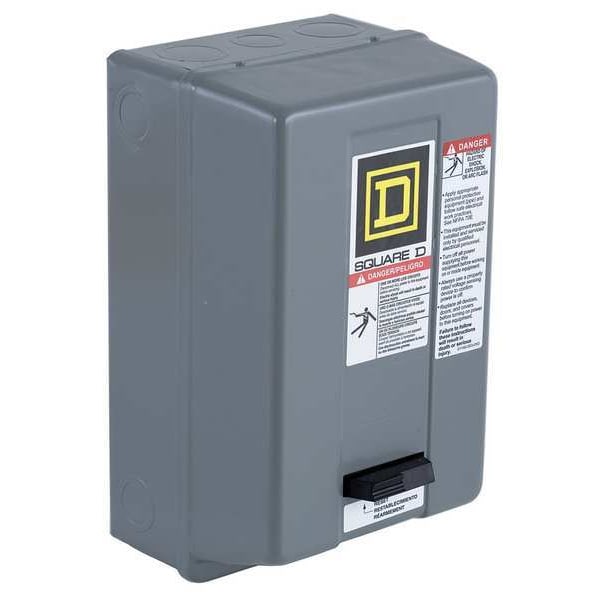

Arrancador magnético no reversible para motor, clasificación NEMA de 1, 208V CA, 2 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 208V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 2 |
| HP @ 1 Phase - 120V | 1 hp |
| Accessory Group | D3 |
| Width | 6 in |
| Depth | 5.56 in |
| Thermal Unit Code | D3 |
| Height | 10 in |
| Hz | 60 |
| HP @ 1 Phase - 230V | 2 hp |
| Standards | CSA, UL Listed |
| Enclosure Type | Painted Steel Sheet |
| Features | Pvc Free |
| Operating Voltage | 600V AC |
| Overall Depth | 5.56 in |
| Coil Voltage | 208V AC |
| Frequency | 60 Hz |
| Overall Width | 6 in |
| Reversing Capability | Non-Reversing |
| Terminal Connection Type | Screw Clamp Terminals |
| Maximum Voltage Rating | 600 V AC |
| Includes Pilot Light | No |
| Operator | None |
| Phase | Single |
| Starter Style | NEMA |
| Horsepower @ Single Phase - 240V AC | 2 HP |
| NEMA Enclosure Rating | 1 |
| Number of Auxillary Contacts | 0 |
| Overload Protection Type | Thermal |
| Horsepower @ Single Phase - 120V AC | 1 HP |
| Includes Auxiliary Contacts | No |
| Operator Function | Not Applicable |
| Overall Height | 10 in |
| Current AC | 18 A |
| Package Quantity | 1 |
