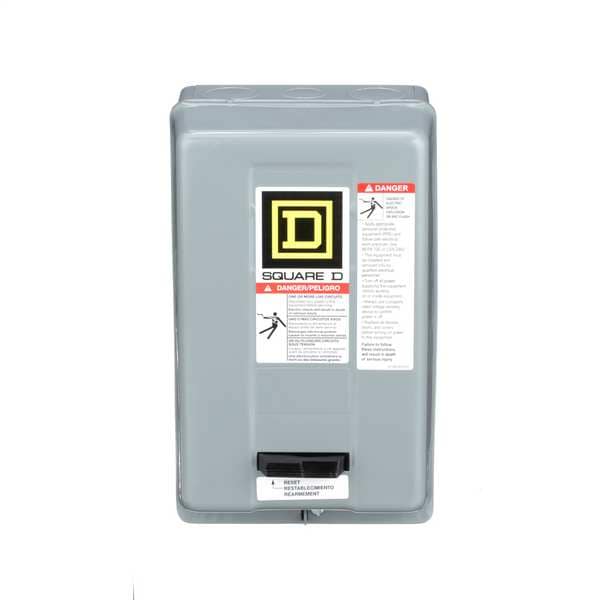

Arrancador de motor magnético no reversible, calificación NEMA 1, 24V CA, 3 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 24V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | Not Applicable |
| HP @ 3 Phase - 240V | 1.5 HP |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 9 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 2 HP |
| Width | 6 in |
| HP @ 3 Phase - 208V | 1.5 HP |
| HP @ 3 Phase - 575V | 2 hp |
| Standards | CSA, UL Listed |
| Depth | 5.56 in |
| Height | 10 in |
| Hz | 60 |
| Thermal Unit Code | B |
| Enclosure Type | Painted Steel Sheet |
| Features | Pvc Free |
| Operating Voltage | 600V AC |
| Phase | Three |
| Horsepower @ Three Phase - 480V AC | 2 HP |
| Includes Pilot Light | No |
| Overall Height | 10 in |
| Maximum Voltage Rating | 600 V AC |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 600V AC | 2 HP |
| Includes Auxiliary Contacts | No |
| Auxiliary Contact Module Capacity | 4 |
| Number of Auxillary Contacts | 0 |
| Horsepower @ Three Phase - 208V AC | 1.5 HP |
| Minimum Overload Relay Current Setting | Not Applicable |
| Overload Protection Type | Thermal |
| Maximum Overload Relay Current Setting | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 1.5 HP |
| Overall Depth | 5.56 in |
| Reversing Capability | Non-Reversing |
| Starter Style | NEMA |
| Operator | None |
| NEMA Enclosure Rating | 1 |
| Coil Voltage | 24V AC |
| Operator Function | Not Applicable |
| Overall Width | 6 in |
| Current AC | 9 A |
| Frequency | 60 Hz |
| Package Quantity | 1 |
