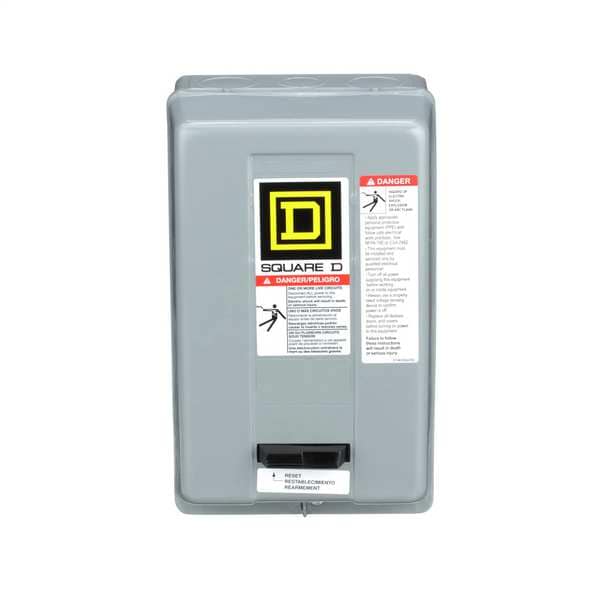

Arrancador magnético no reversible, clasificación NEMA 1, 24V AC, 3 polos, Sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 24V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 3 HP |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 HP |
| Standards | CSA, UL Listed |
| HP @ 3 Phase - 208V | 3 HP |
| HP @ 3 Phase - 575V | 5 hp |
| Width | 6 in |
| Height | 10 in |
| Depth | 5.56 in |
| Hz | 60 |
| Enclosure Type | Painted Steel Sheet |
| Thermal Unit Code | B |
| Features | Pvc Free |
| Operating Voltage | 600V AC |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Height | 10 in |
| Includes Auxiliary Contacts | No |
| Overall Depth | 5.56 in |
| Minimum Overload Relay Current Setting | Not Applicable |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Operator Function | Not Applicable |
| Operator | None |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Overall Width | 6 in |
| Overload Protection Type | Thermal |
| Current AC | 18 A |
| Starter Style | NEMA |
| NEMA Enclosure Rating | 1 |
| Maximum Overload Relay Current Setting | Not Applicable |
| Frequency | 60 Hz |
| Reversing Capability | Non-Reversing |
| Maximum Voltage Rating | 600 V AC |
| Phase | Three |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Number of Auxillary Contacts | 0 |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Includes Pilot Light | No |
| Coil Voltage | 24V AC |
| Package Quantity | 1 |
