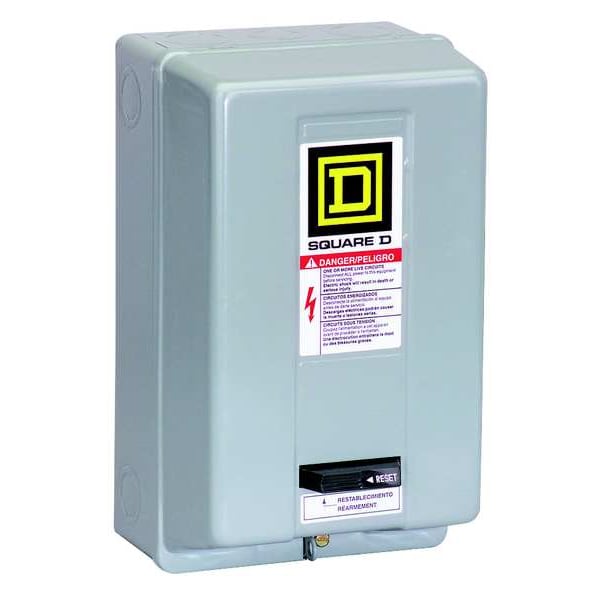

Arrancador de motor magnético no reversor, 1 Clasificación NEMA, 24V AC, 3 Polos, Sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 24V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 7.5 HP |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 HP |
| Standards | CSA, UL Listed |
| Width | 6 in |
| HP @ 3 Phase - 575V | 10 hp |
| HP @ 3 Phase - 208V | 7.5 HP |
| Depth | 5.56 in |
| Hz | 60 |
| Height | 10 in |
| Thermal Unit Code | B |
| Features | Pvc Free |
| Enclosure Type | Painted Steel Sheet |
| Operating Voltage | 600V AC |
| NEMA Enclosure Rating | 1 |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Reversing Capability | Non-Reversing |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Minimum Overload Relay Current Setting | Not Applicable |
| Coil Voltage | 24V AC |
| Overall Height | 10 in |
| Includes Auxiliary Contacts | No |
| Frequency | 60 Hz |
| Current AC | 27 A |
| Maximum Voltage Rating | 600 V AC |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Overall Width | 6 in |
| Phase | Three |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Overall Depth | 5.56 in |
| Operator Function | Not Applicable |
| Number of Auxillary Contacts | 0 |
| Includes Pilot Light | No |
| Maximum Overload Relay Current Setting | Not Applicable |
| Operator | None |
| Type Of Overload | Melting alloy 3 |
| Control Circuit Type | Separate control circuit |
| Pilot Light | Without pilot light |
| Control Units | No control units |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Auxiliary Contacts | Without |
| Certifications | UL Listed, CSA, NEMA |
| Horsepower Rating | 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC |
| Package Quantity | 1 |
