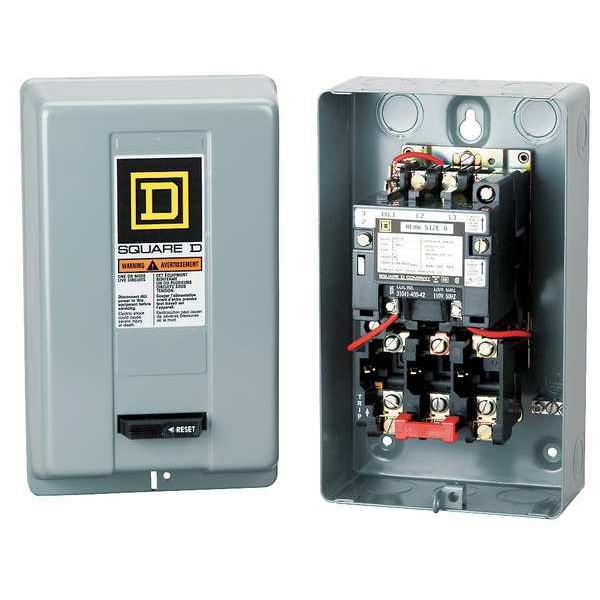

Arrancador magnético no reversible para motor, calificación NEMA 1, 480V CA, 3 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 480V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 50 HP |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 135 A |
| NEMA Size | 4 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 100 HP |
| Width | 11-1/4 in |
| HP @ 3 Phase - 575V | 100 hp |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Depth | 9 in |
| Height | 25.16 in |
| HP @ 3 Phase - 208V | 40 HP |
| Accessory Group | C6 |
| Thermal Unit Code | CC |
| Enclosure Type | Painted Steel Sheet |
| Operating Voltage | 600V AC |
| Operator Function | Not Applicable |
| Maximum Overload Relay Current Setting | Not Applicable |
| Horsepower @ Three Phase - 480V AC | 100 HP |
| Operator | None |
| Phase | Three |
| NEMA Enclosure Rating | 1 |
| Reversing Capability | Non-Reversing |
| Minimum Overload Relay Current Setting | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Frequency | 50/60 Hz |
| Coil Voltage | 480V AC |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Three Phase - 240V AC | 50 HP |
| Horsepower @ Three Phase - 208V AC | 40 HP |
| Includes Auxiliary Contacts | No |
| Overall Depth | 9 in |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 600V AC | 100 HP |
| Overall Width | 11-1/4 in |
| Starter Style | NEMA |
| Overall Height | 25.16 in |
| Number of Auxillary Contacts | 0 |
| Includes Pilot Light | No |
| Current AC | 135 A |
| Type Of Overload | Melting alloy 3 |
| Pilot Light | Without pilot light |
| Control Circuit Type | Common control circuit |
| Control Units | No control units |
| Short Circuit Current Rating | 10 kA to 600 V AC (Circuit-breaker), 10 kA to 600 V AC (Fuse) |
| Horsepower Rating | 40 HP 200 V AC; 50 HP 230 V AC; 100 HP 460 V AC; 100 HP 575 V AC |
| Certifications | UL Listed, CSA, NEMA |
| Auxiliary Contacts | Without |
| Package Quantity | 1 |
