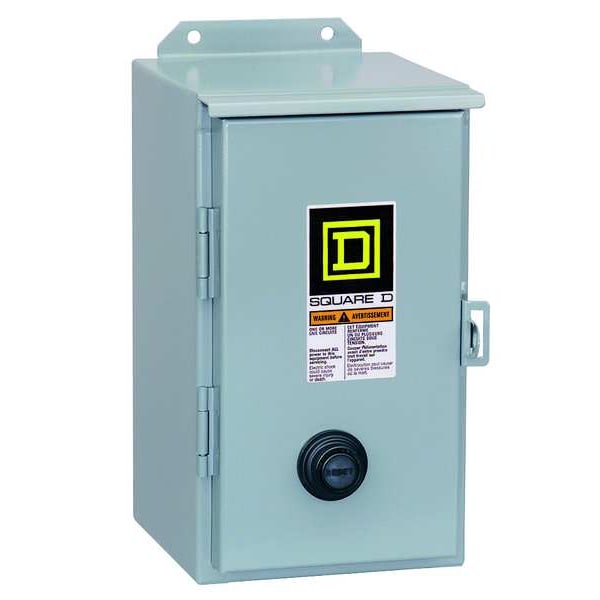

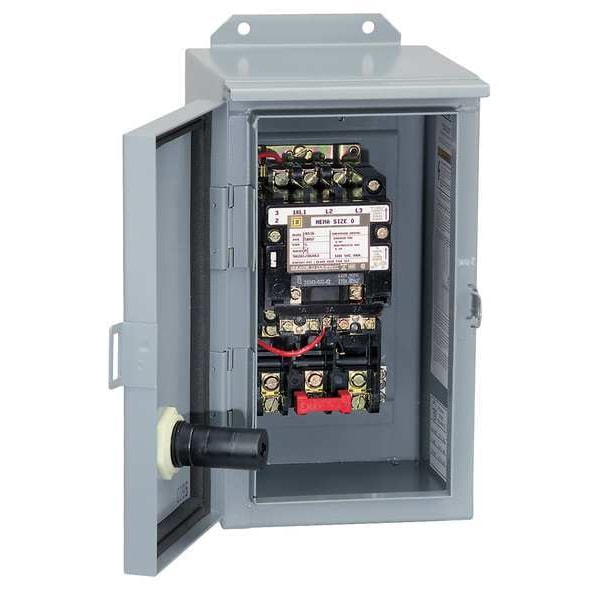

Arrancador magnético no reversible para motor, calificación NEMA 3R de 12, 120V AC, 3 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | 12, 3R |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 30 HP |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 90 A |
| NEMA Size | 3 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 50 HP |
| HP @ 3 Phase - 208V | 25 HP |
| Height | 31-1/2 in |
| Hz | 50/60 |
| HP @ 3 Phase - 575V | 50 hp |
| Depth | 9.56 in |
| Thermal Unit Code | CC |
| Width | 18.16 in |
| Accessory Group | C5 |
| Standards | CSA, UL Listed |
| Enclosure Type | Painted Steel Sheet |
| Operating Voltage | 600V AC |
| Phase | Three |
| NEMA Enclosure Rating | 12 |
| Minimum Overload Relay Current Setting | Not Applicable |
| Current AC | 90 A |
| Overall Width | 18.16 in |
| Number of Auxillary Contacts | 0 |
| Includes Pilot Light | No |
| Overall Depth | 9.56 in |
| Reversing Capability | Non-Reversing |
| Overload Protection Type | Thermal |
| Horsepower @ Three Phase - 480V AC | 50 HP |
| Horsepower @ Three Phase - 208V AC | 25 HP |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 600V AC | 50 HP |
| Overall Height | 31-1/2 in |
| Coil Voltage | 110/120V AC |
| Operator | None |
| Operator Function | Not Applicable |
| Maximum Voltage Rating | 600 V AC |
| Includes Auxiliary Contacts | No |
| Frequency | 50/60 Hz |
| Maximum Overload Relay Current Setting | Not Applicable |
| Terminal Connection Type | Screw Clamp Terminals |
| Horsepower @ Three Phase - 240V AC | 30 HP |
| Package Quantity | 1 |
