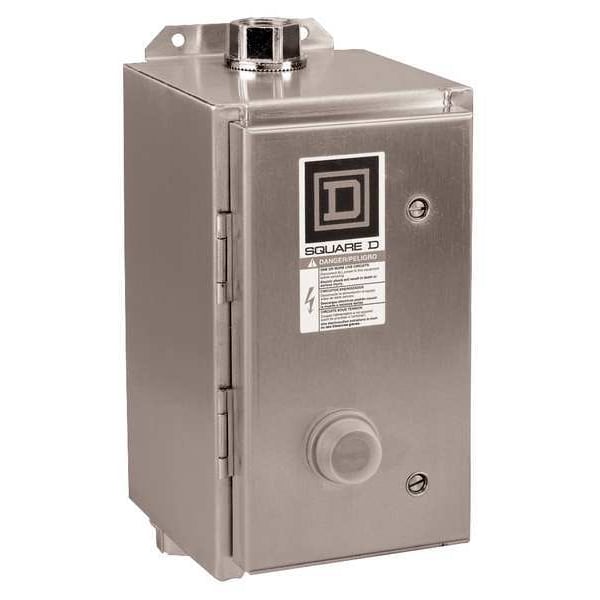

Arrancador magnético de motor no reversible, clasificación NEMA 4 y 4X, 120V CA, 3 polos, sin contactos auxiliares.
| Item | Magnetic Motor Starter |
|---|---|
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | 4X, 4 |
| Auxiliary Contact Form | No Auxiliary Contacts |
| HP @ 3 Phase - 240V | 3 HP |
| Starter Type | NEMA |
| Action | Nonreversing |
| Amps AC | 18 A |
| NEMA Size | 0 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 5 HP |
| HP @ 3 Phase - 575V | 5 hp |
| Hz | 50/60 |
| Thermal Unit Code | B |
| Depth | 7.81 in |
| HP @ 3 Phase - 208V | 3 HP |
| Height | 13.19 in |
| Accessory Group | C2 |
| Width | 6.38 in |
| Standards | CSA, UL Listed |
| Includes | Melting Alloy Thermal Overload Relay and Instantaneous Magnetic Trip Mechanism |
| Features | Pvc Free |
| Enclosure Type | NEMA 4/4X brushed stainless steel |
| Operating Voltage | 600V AC |
| Operator | None |
| Coil Voltage | 110/120V AC |
| Overall Width | 6.38 in |
| Number of Auxillary Contacts | 0 |
| Includes Pilot Light | No |
| Phase | Three |
| Maximum Overload Relay Current Setting | Not Applicable |
| Overload Protection Type | Thermal |
| Current AC | 18 A |
| Horsepower @ Three Phase - 600V AC | 5 HP |
| Horsepower @ Three Phase - 480V AC | 5 HP |
| Maximum Voltage Rating | 600 V AC |
| Includes Auxiliary Contacts | No |
| Frequency | 50/60 Hz |
| Overall Height | 13.19 in |
| Overall Depth | 7.81 in |
| Terminal Connection Type | Screw Clamp Terminals |
| NEMA Enclosure Rating | 4X |
| Starter Style | NEMA |
| Horsepower @ Three Phase - 208V AC | 3 HP |
| Minimum Overload Relay Current Setting | Not Applicable |
| Horsepower @ Three Phase - 240V AC | 3 HP |
| Reversing Capability | Non-Reversing |
| Operator Function | Not Applicable |
| Horsepower Rating | 3 HP 200 V AC; 3 HP 230 V AC; 5 HP 460 V AC; 5 HP 575 V AC |
| Pilot Light | Without pilot light |
| Certifications | UL Listed, CSA, NEMA |
| Control Units | No control units |
| Type Of Overload | Melting alloy 3 |
| Short Circuit Current Rating | 5 kA to 600 V AC (Circuit-breaker), 5 kA to 600 V AC (Fuse) |
| Control Circuit Type | Separate control circuit |
| Auxiliary Contacts | Without |
| Package Quantity | 1 |
