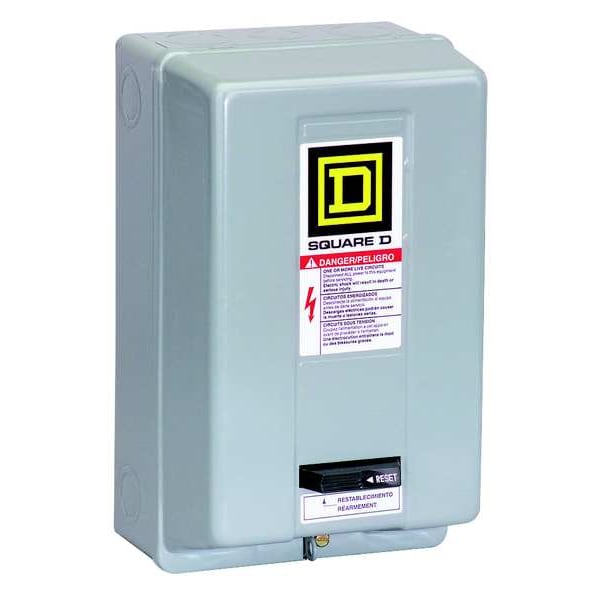

Arrancador magnético NEMA sin reverso, clasificación NEMA 1, 240V CA, 3 polos, 1NC.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 9 to 27 A |
| Coil Volts | 240V AC |
| Enclosure NEMA Rating | 1 |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 7.5 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 HP |
| Width | 5.3 in |
| Depth | 6 in |
| Hz | 50/60 |
| Includes | Solid state overload relay |
| Standards | CSA, UL Listed |
| Features | Solid State Overload Relay |
| HP @ 3 Phase - 208V | 7.5 HP |
| Height | 10 in |
| HP @ 3 Phase - 575V | 10 hp |
| Thermal Unit Code | Not Applicable |
| Enclosure Type | Painted Steel Sheet |
| Operating Voltage | 600V AC |
| Overall Height | 10 in |
| Phase | Three |
| Trip Class | 10/20 |
| Includes Auxiliary Contacts | No |
| Frequency | 50/60 Hz |
| Overall Width | 6 in |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Overload Protection Type | Electronic |
| Starter Style | NEMA |
| Maximum Overload Relay Current Setting | 27 A |
| Number of Auxillary Contacts | 0 |
| Coil Voltage | 220/240V AC |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Terminal Connection Type | Screw Clamp Terminals |
| Overall Depth | 5.56 in |
| Operator Function | Not Applicable |
| Current AC | 27 A |
| Minimum Overload Relay Current Setting | 9 A |
| NEMA Enclosure Rating | 1 |
| Includes Pilot Light | No |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Maximum Voltage Rating | 600 V AC |
| Reversing Capability | Non-Reversing |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Operator | None |
| Package Quantity | 1 |
