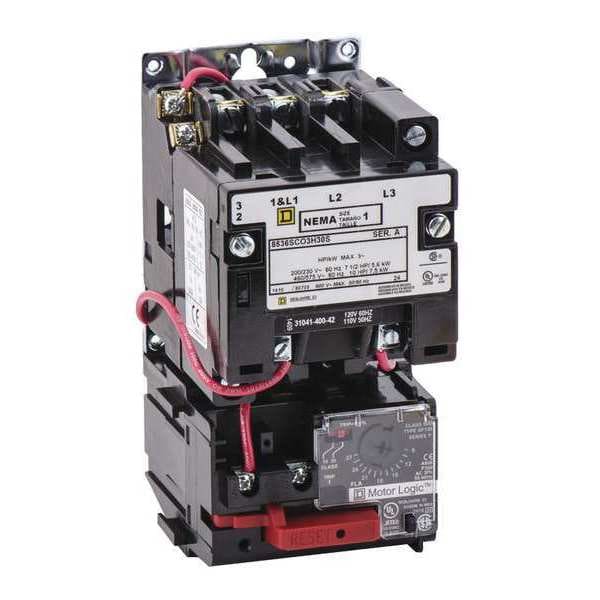

Arrancador magnético NEMA de motor no reversible, sin gabinete de protección, clasificación NEMA, 120V AC, 3 polos, 1 contacto NA.
| Item | NEMA Magnetic Motor Starter |
|---|---|
| Overload Relay Amp Setting | 9 to 27 A |
| Coil Volts | 120V AC |
| Enclosure NEMA Rating | No Enclosure |
| Auxiliary Contact Form | 1NO |
| HP @ 3 Phase - 240V | 7.5 HP |
| Starter Type | NEMA Style |
| Action | Nonreversing |
| Amps AC | 27 A |
| NEMA Size | 1 |
| Number of Poles | 3 |
| HP @ 3 Phase - 480V | 10 HP |
| HP @ 3 Phase - 208V | 7.5 HP |
| Hz | 50/60 |
| Standards | CSA, UL Listed |
| Height | 6.9 in |
| Width | 4-1/2 in |
| Features | Solid State Overload Relay |
| HP @ 3 Phase - 575V | 10 hp |
| Depth | 3-1/2 in |
| Includes | Solid state overload relay |
| Enclosure Type | Open |
| Thermal Unit Code | Not Applicable |
| Operating Voltage | 600V AC |
| Overall Width | 3-1/2 in |
| Number of Auxillary Contacts | 0 |
| Frequency | 50/60 Hz |
| Maximum Overload Relay Current Setting | 27 A |
| Terminal Connection Type | Screw Clamp Terminals |
| Includes Pilot Light | No |
| Trip Class | 10/20 |
| Overload Protection Type | Electronic |
| Includes Auxiliary Contacts | No |
| Minimum Overload Relay Current Setting | 9 A |
| Reversing Capability | Non-Reversing |
| NEMA Enclosure Rating | No Enclosure |
| Maximum Voltage Rating | 600 V AC |
| Horsepower @ Three Phase - 208V AC | 7.5 HP |
| Horsepower @ Three Phase - 480V AC | 10 HP |
| Overall Depth | 4.22 in |
| Coil Voltage | 110/120V AC |
| Horsepower @ Three Phase - 240V AC | 7.5 HP |
| Phase | Three |
| Starter Style | NEMA |
| Current AC | 27 A |
| Operator Function | Not Applicable |
| Overall Height | 6.77 in |
| Horsepower @ Three Phase - 600V AC | 10 HP |
| Operator | None |
| Control Units | No control units |
| Certifications | UL Listed, CSA, NEMA |
| Pilot Light | Without pilot light |
| Type Of Overload | Solid state Motor Logic class 10/20 |
| Short Circuit Current Rating | Circuit-breaker 70 A maximum: 100 kA at 480 V AC; Fuse J 60 A maximum: 100 kA at 600 V AC; Fuse T 60 A maximum: 100 kA at 600 V AC; Fuse RK1 60 A maximum: 100 kA at 600 V AC; Fuse RK5 60 A maximum: 100 kA at 600 V AC |
| Control Circuit Type | Separate control circuit |
| Horsepower Rating | 7.5 HP 200 V AC; 7.5 HP 230 V AC; 10 HP 460 V AC; 10 HP 575 V AC |
| Auxiliary Contacts | Without |
| Package Quantity | 1 |
